Description

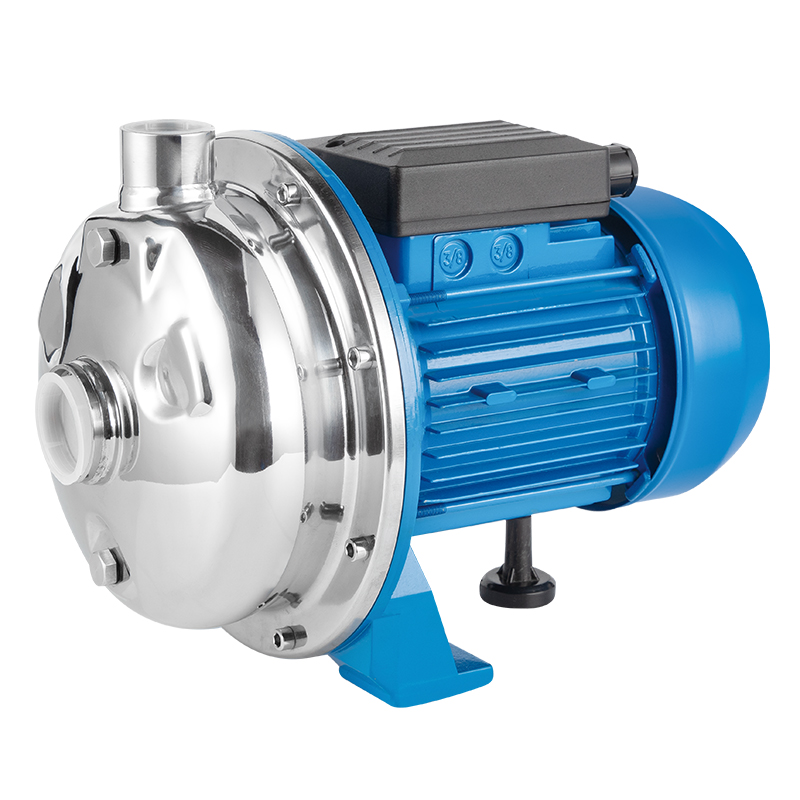

Stainless Steel Centrifugal Pump
Model: SCM-18ST / 20ST / 26ST
Power: 0.37- 0.75 KW
Flow: 140 – 150 L/min
Head: 18 -26 m
Intel/Outlet: 1.25″ x 1″
Operating conditions:
1. Liquid temperature up to 60C
2. Ambient temperature up to 40C
3. Total suction lift up to 8m
4. Continuous duty
Motor
1. Two-Pole induction motor(n=2900r. P. M. )
2. Insulation Class B/F
3. Protection IP44
Material
1. Pump body: Stainless steel304/316
2. Motor Support: Aluminum
3. Impeller: Stainless steel304/316
4. Shaft with rotor: Stainless steel304/316
5. Mechanical seal: Silicone/Carbon/Ceramic
Application:
Single impeller centrifugal pumps with hydraulic components manufactured from stainless steel AISI304, suitable for pressure boosting, water supply, treatment & irrigation. Air conditioning systems, pharmaceutical, food and refining chemical industries, washing and sprinkling, and general water pumping including moderately aggressive liquids.
220v/50Hz, 230v/50Hz, 110v/60Hz & 115v/60Hz models are available on request Send email to us
| Model | Power | Q.max. L/min | H.max. m | Inlet/Outlet mm | |
| HP | KW | ||||
| SCM-18ST | 0.5 | 0.37 | 140 | 18 | 30×25 |
| SCM-20ST | 0.75 | 0.55 | 145 | 20 | 30×25 |
| SCM-26ST | 1 | 0.75 | 150 | 26 | 30×25 |
| SCM-34ST | 1.5 | 1.1 | 192 | 34 | 30×25 |
