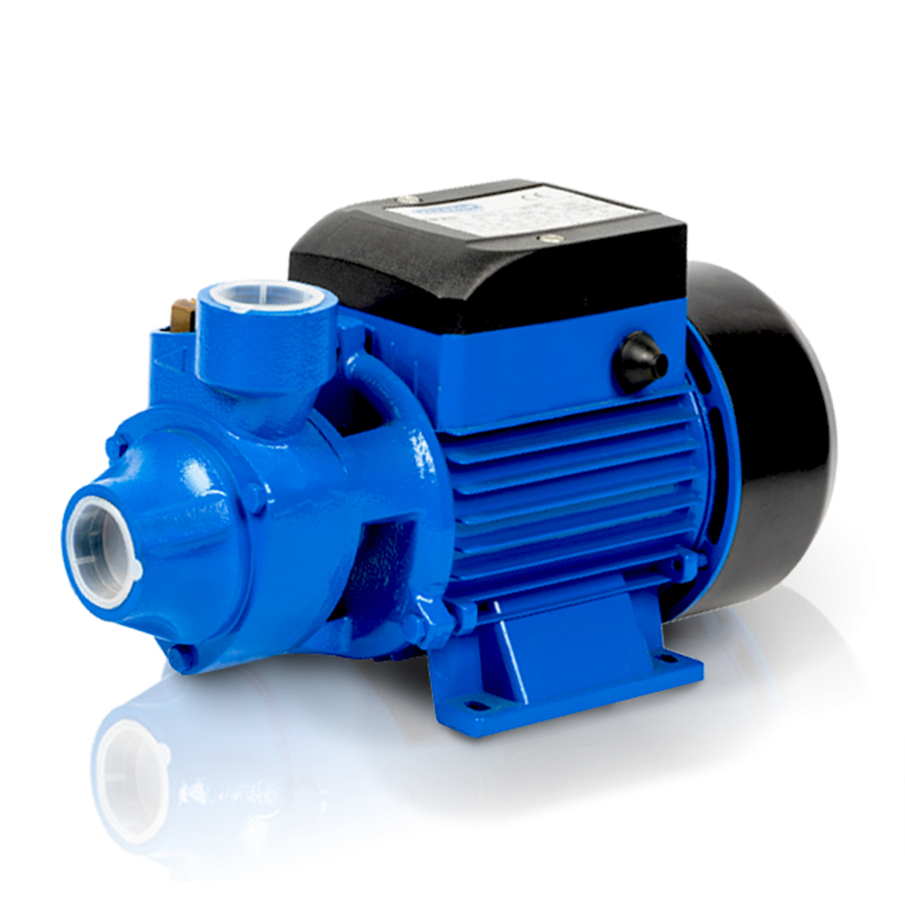

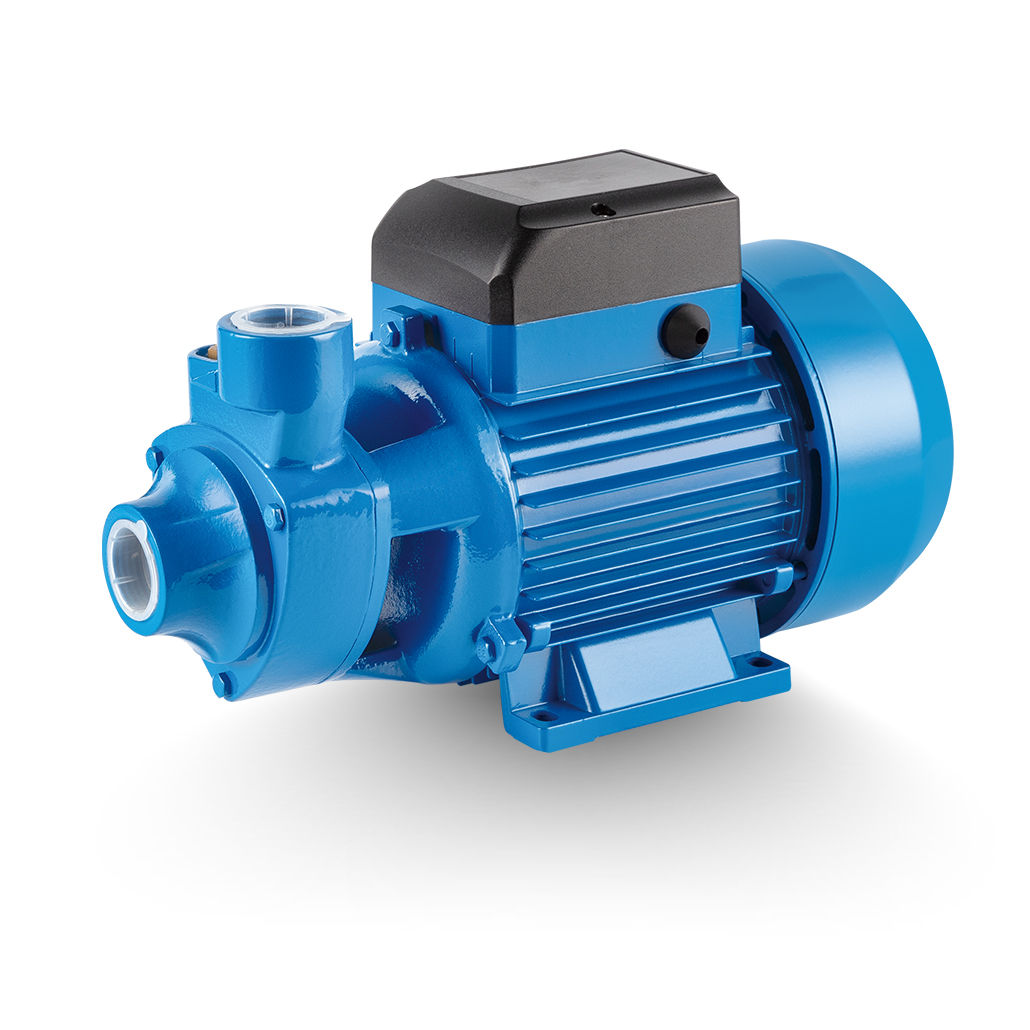

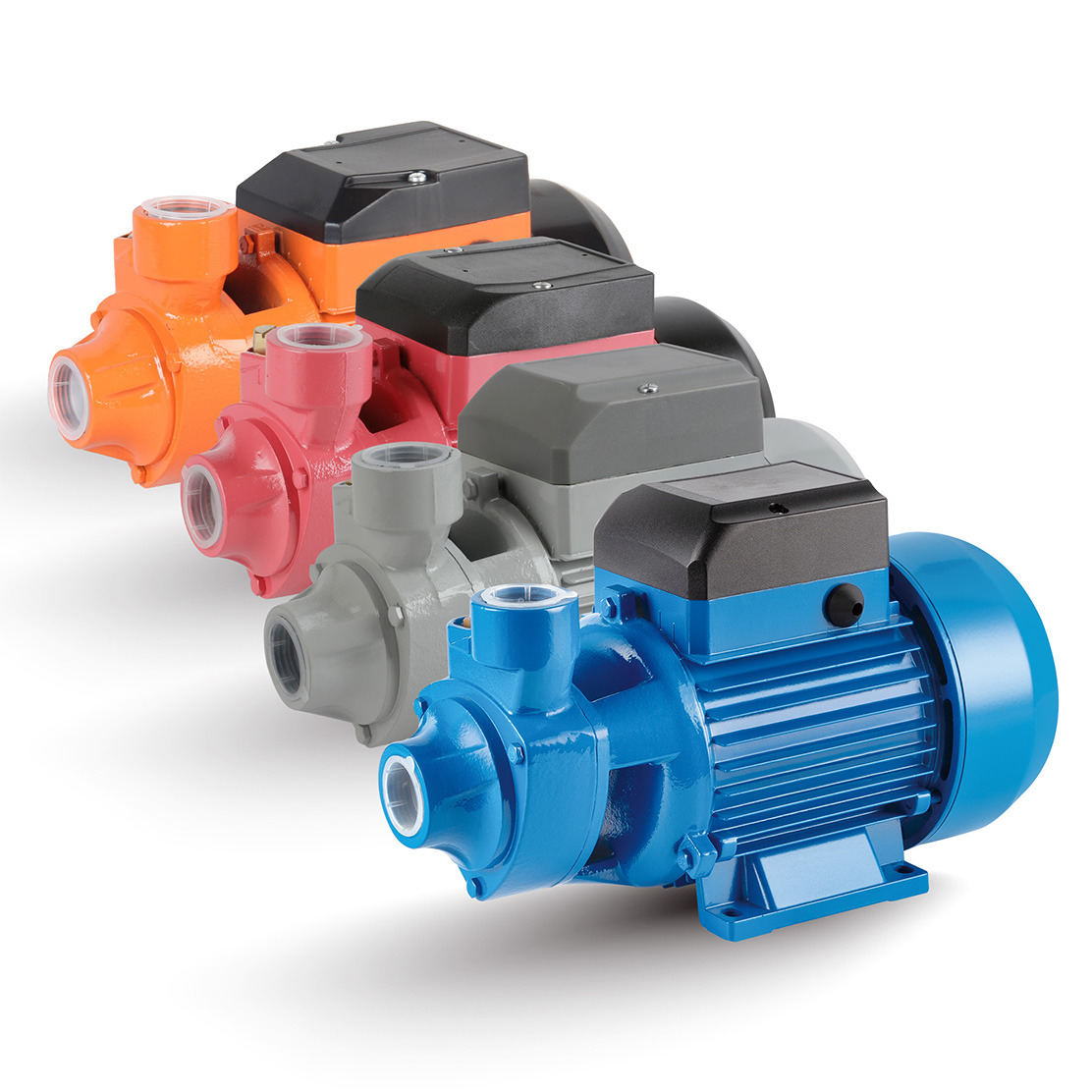

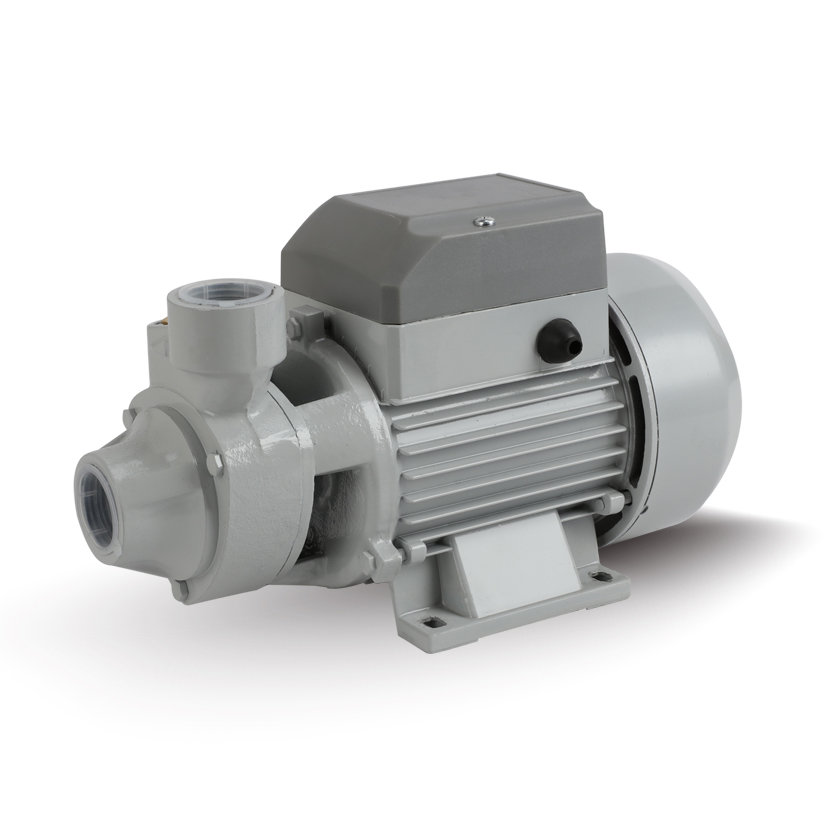

QB series peripheral pumps are mainly used to tansfer clean water or other liquid which is similar with water character.It is suitable for domestic water supply,automatic water sprinkler system,small air conditioner system or supporting equipment etc.

Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
-Suitable for farm irrigation, pressure boosting, garden watering and other applications.
-Suitable for pumping clean water, or non-aggressive liquids only, without sand or other solid impurities.

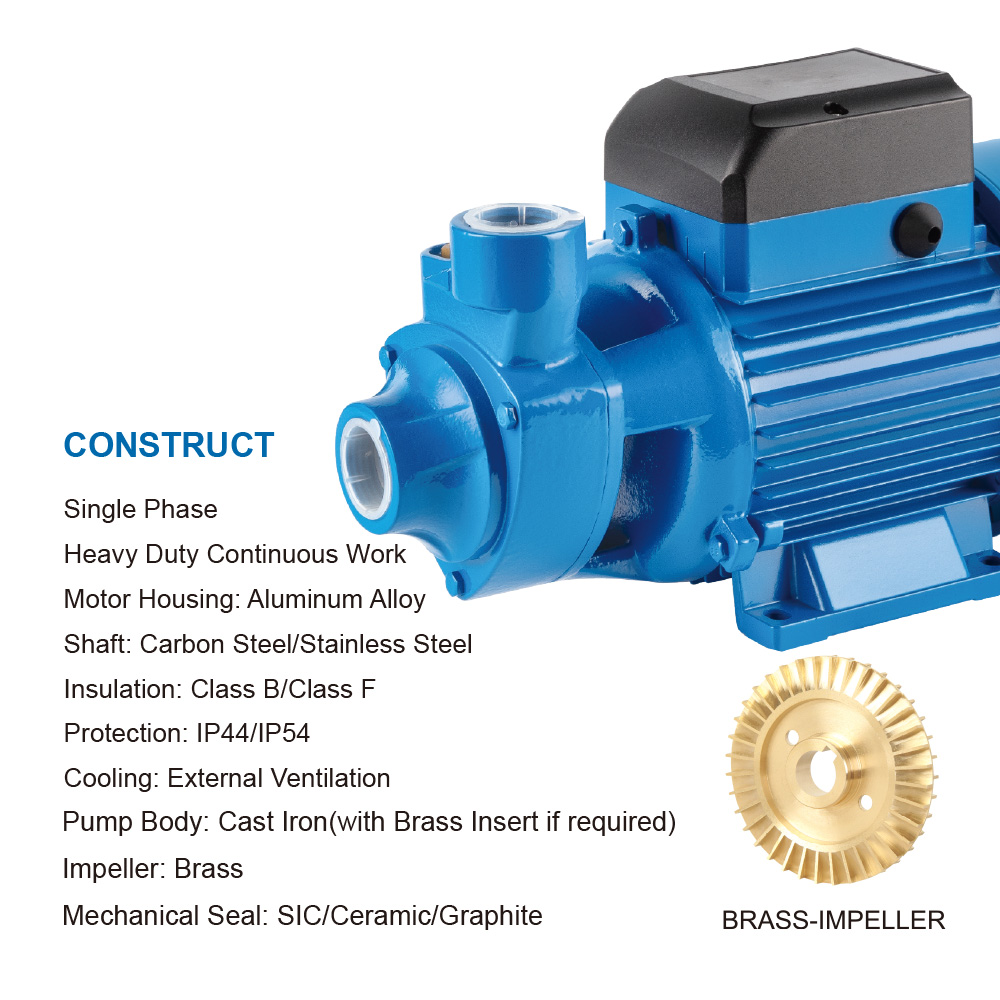

Technical data

Description

PUMP
Single PhaseHeavy Duty Continuous Work
Pump bodyCast iron
ImpellerBrass/Stainless Steel/Techno-polymer(P.P.O)
Mechanical SealSIC/Ceramic/Graphite

MOTOR

Motor HousingAluminum Alloy
ShaftCarbon steel/stainless steel
InsulationClassB/Class F
ProtectionIP44/IP54
CoolingExternal Ventilation

TECHINICAL DATA AT 220-240V/50HZ

MODELPOWERMAX.FLOWMAX.HEADMAX.SUCTINLET/OUTLETGWPACKING DIMENSION(MM)
kWHP(l/min)(M)(M)(inch)(kgs)
QB600.370.5404091″ x 1″5.3285*150*165
QB700.550.75455091″ x 1″9320*180*200
QB800.751.0505591.5″ x 1.5″9.5330*180*200
