Description

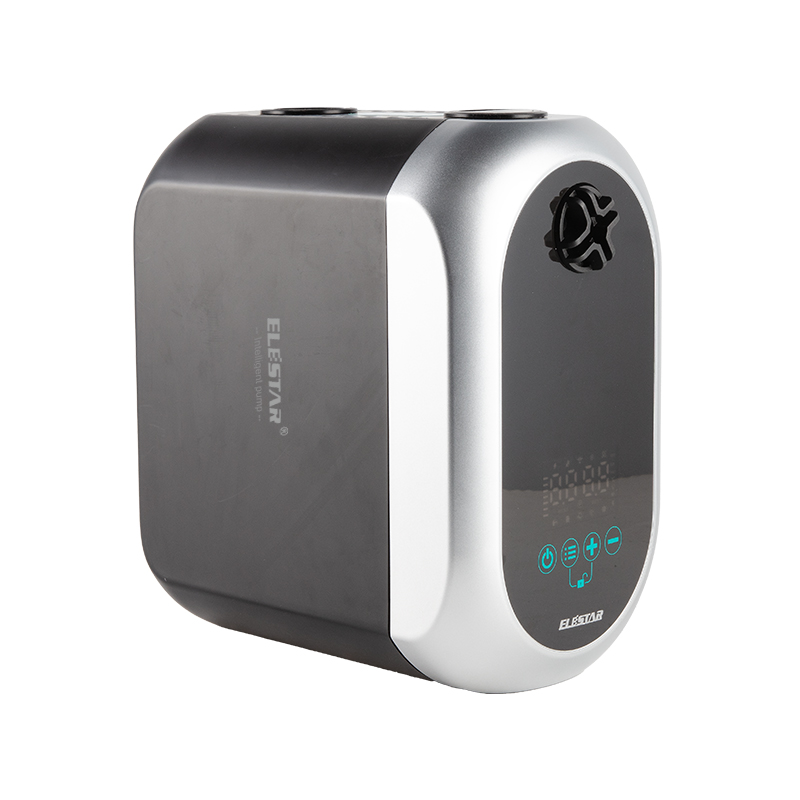

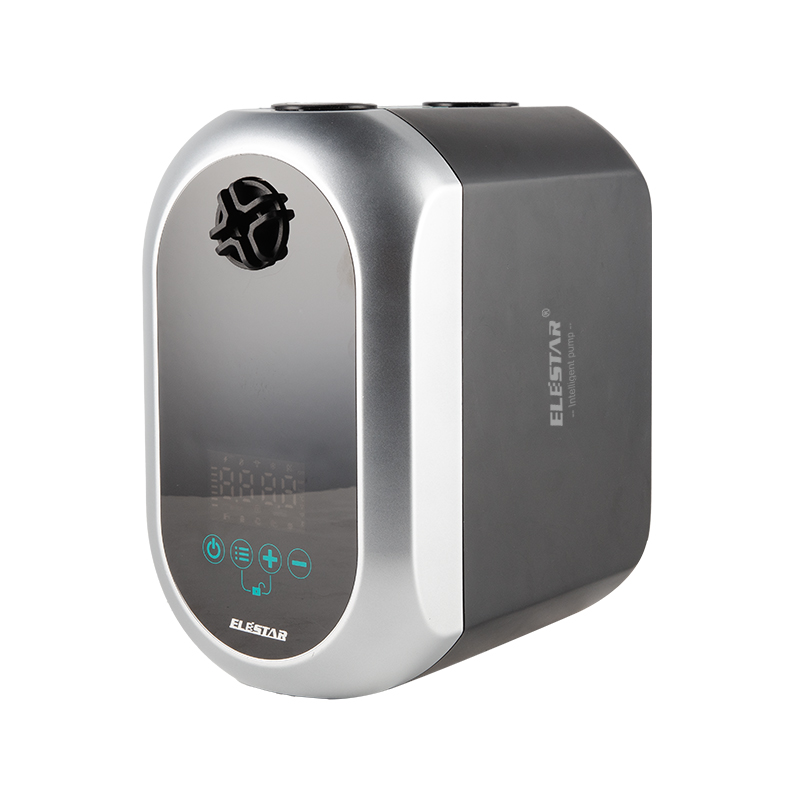

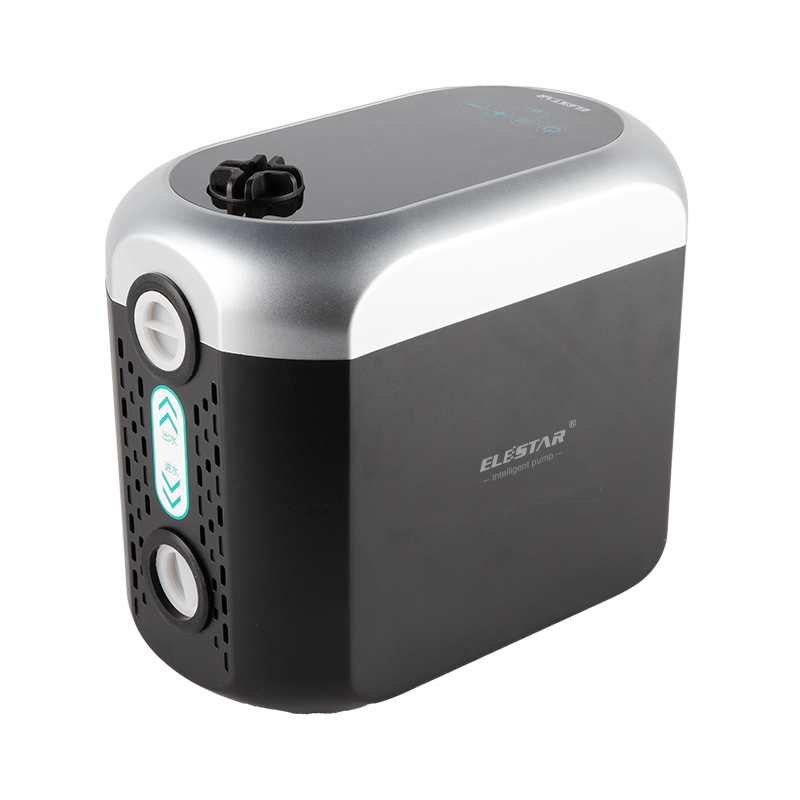

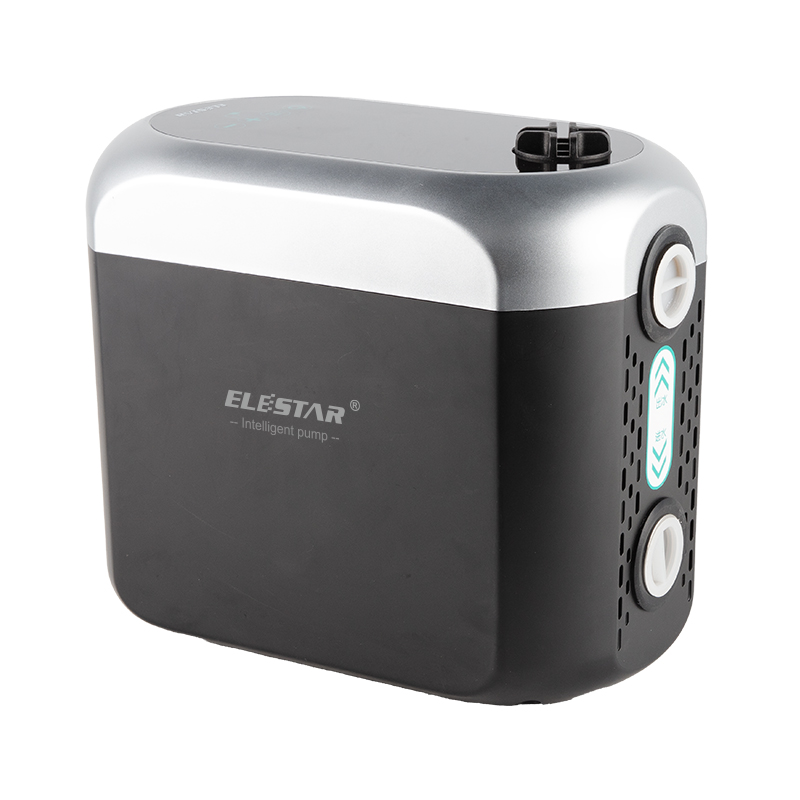

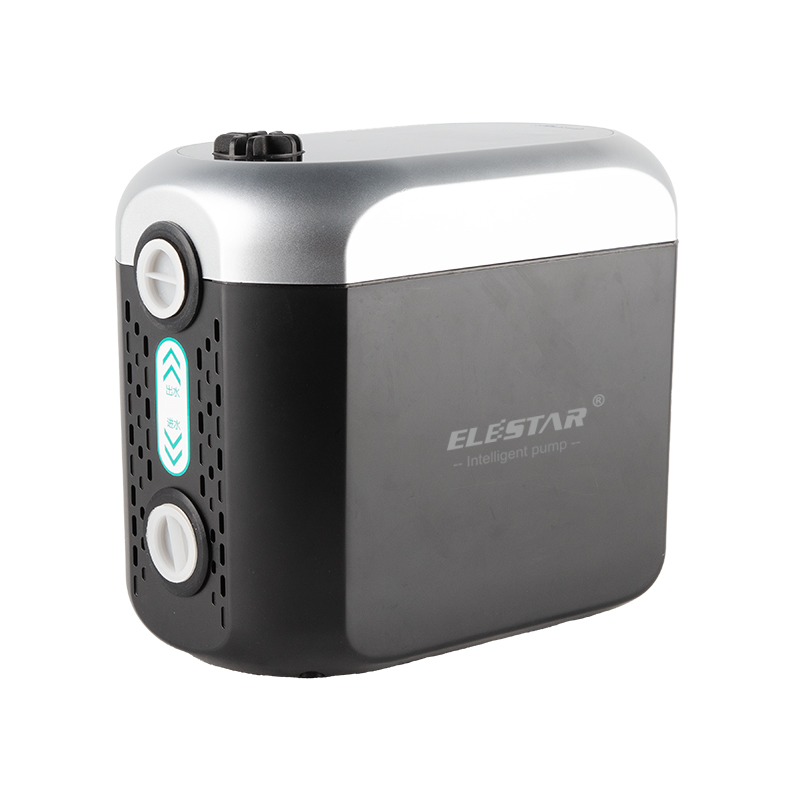

Permanent magnet variable frequency booster pump, constant pressure household self suction water pump
The permanent magnet variable frequency self priming silent constant pressure pump is a new generataion of intelligent constant pressure water supply integrated with intelligent control systems,motors,water pumps,pressure sensors,water control switches,etc.It has advantages such as high lift,large flow rate,ultra quiet,efficient &energy-saving,healthy environmentally friendly,intelligent control and so on..
Suitable for industrial&urban water supply,pressure rise for high building,garden irrigating, long distance water
transfer and relevant equipment etc.
transfer and relevant equipment etc.
Operating Conditions
Liquid temperature up to 60ºC
Ambient temperature up to 40ºC
Total suction lift up to 9m
Continuous duty
Liquid temperature up to 60ºC
Ambient temperature up to 40ºC
Total suction lift up to 9m
Continuous duty
Multiple Protection Function | lightning protection | Compact size: reasonable structure,release more space |
Blocked protection over voltage protection | dry running protection | Electrophoresis process: waterproof, rust-proof and more durable. |
low voltage protection | over current protection | Copper wire motor: high efficiency. big power and low noise. |
motor lack phase protection | protect the equipment and keep safe | Economical and environmental protection: easy maintenance and greatly increase the service life |
CONSTRUCT | Pump & Motor | ||
Heavy Duty Continuous Work | Mechanical Seal: | SIC/Ceramic/Graphite | |
Single Phase | Shaft: | Carbon Steel/Stainless Steel | |
Motor Housing: | Aluminum Alloy | Insulation: | Class B /Class F |
Cooling: | External Ventilation | Protection: | IP44/IP54 |
Impeller: | Brass/Techno-polymer(P.P.O)/Stainless Steel | Pump Body: | Stainless Steel |
