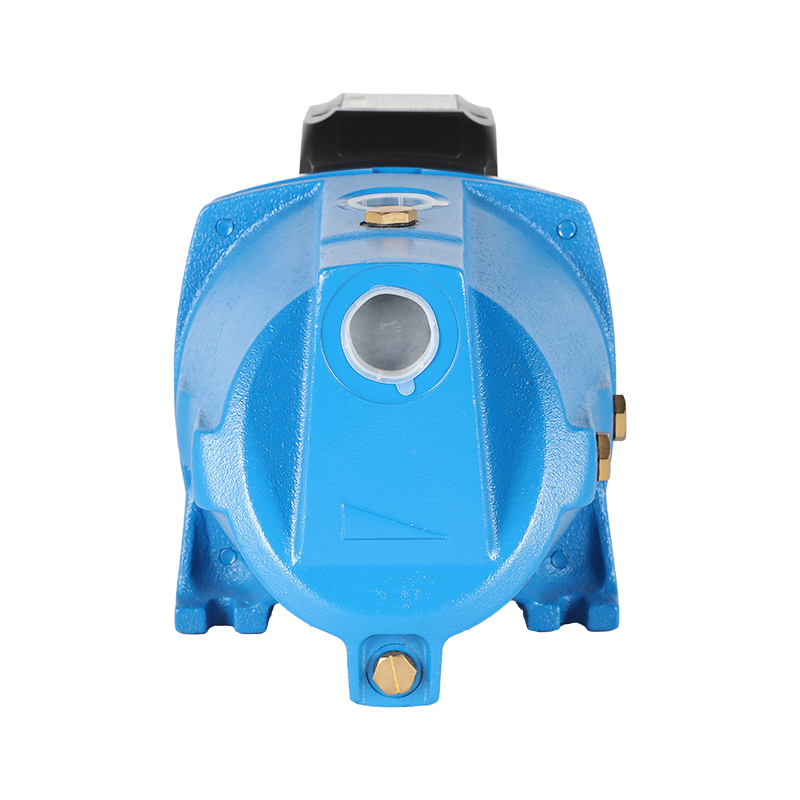

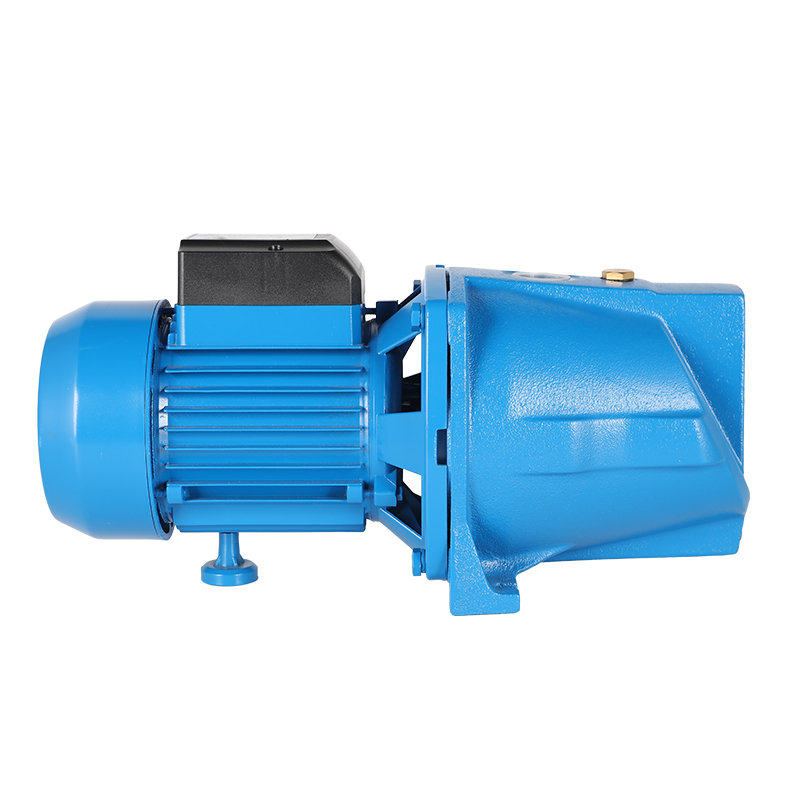

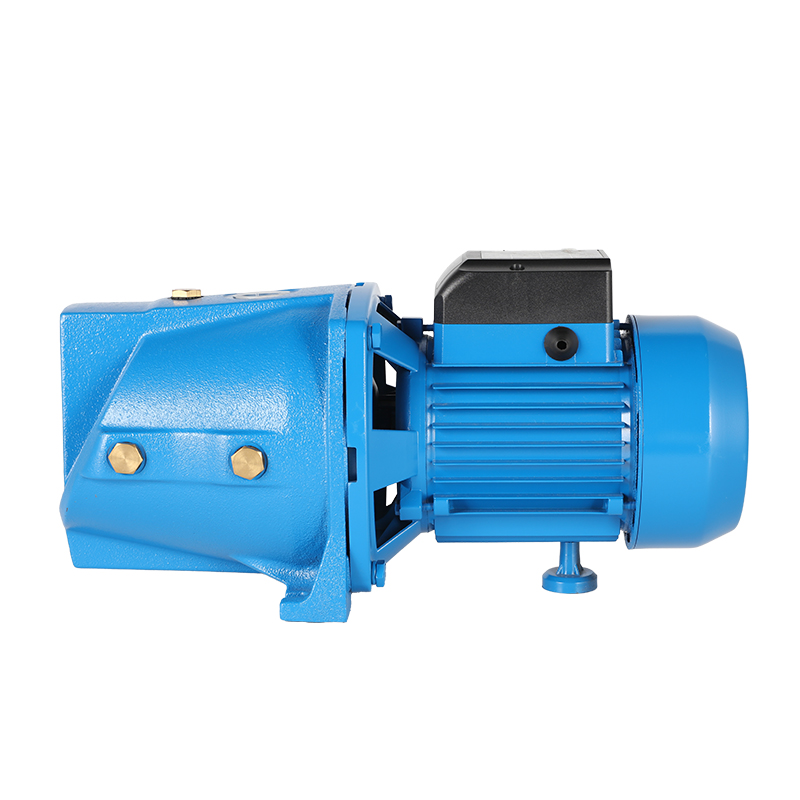

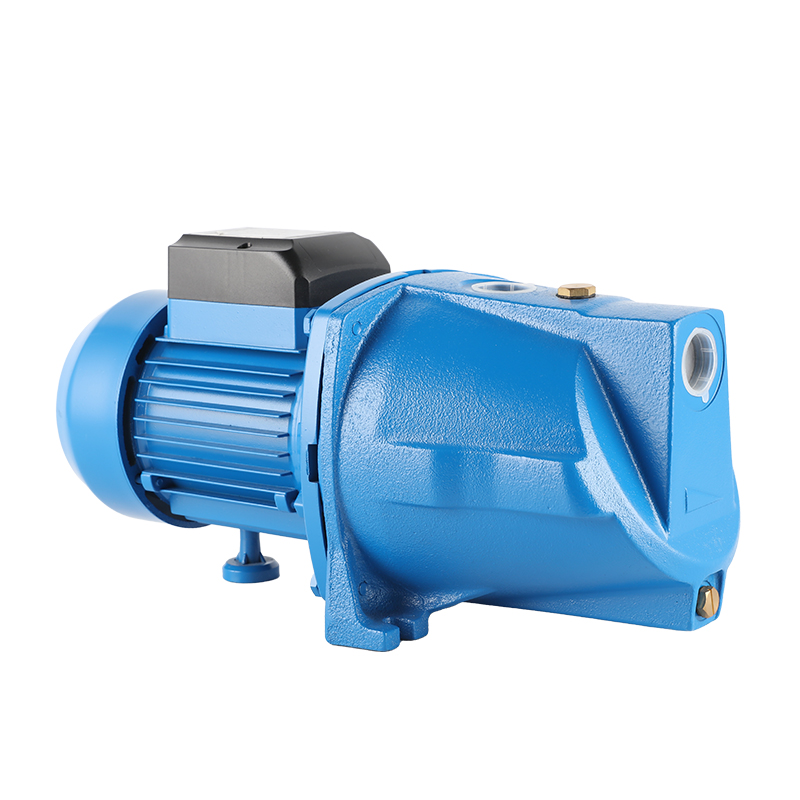

These series self-priming JSW-10M pumps equipped with same dynamical system each. They are suitable to convey clean water and nonaggressive chemical fluids. even with liquid mixed with gas, from well in continuous work; they are also indicated to increase water pressure in centralized water systems, for small irrigation systems, for watering gardens, for washing systems with water jets, for fountains, etc. It is normally advisable to install a foot valve on the suction branch.

WORKING CONDITIONS
Max temperature of fluid up to+40℃.
Max pressure: 8 bar.
Max ambient temperature up to 40℃.

STANDARD DATA AND EQUIPMENT
Single phase 220v/50Hz, brass or plastic impeller, carbon steel motor shaft, with thermal protector inside. Other model and material such as three phase, 110V, 60Hz, dualvoltage, stainless shaft, etc, will be available upon request.
