$20.00

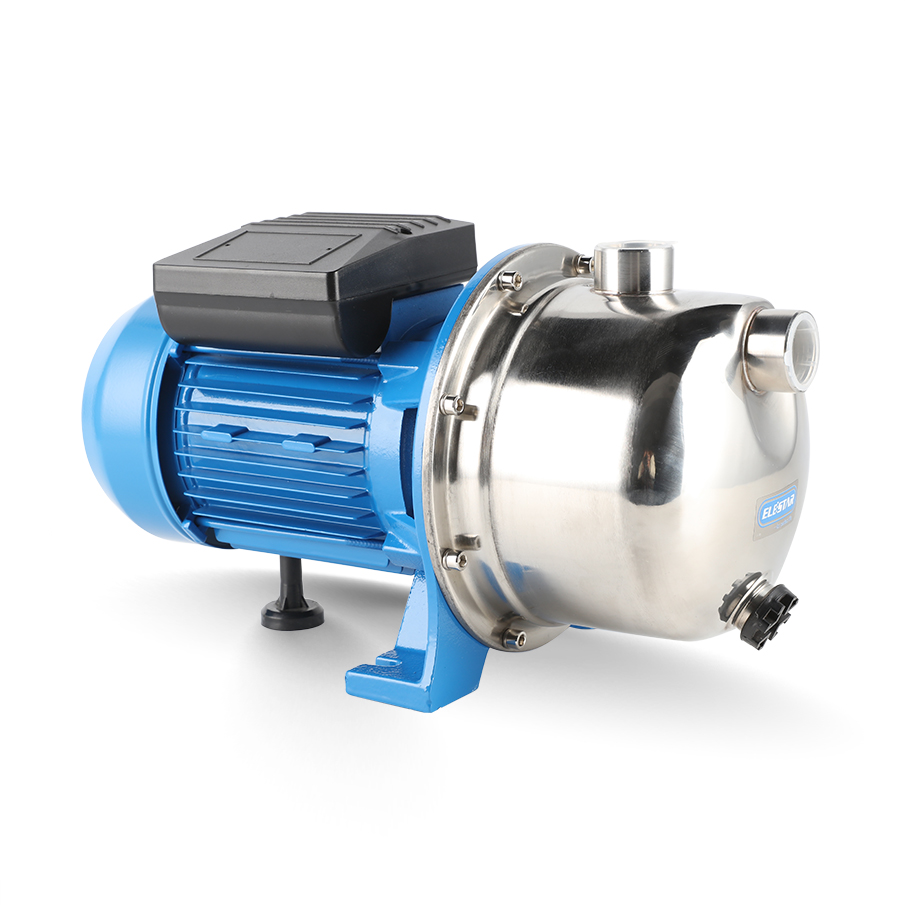

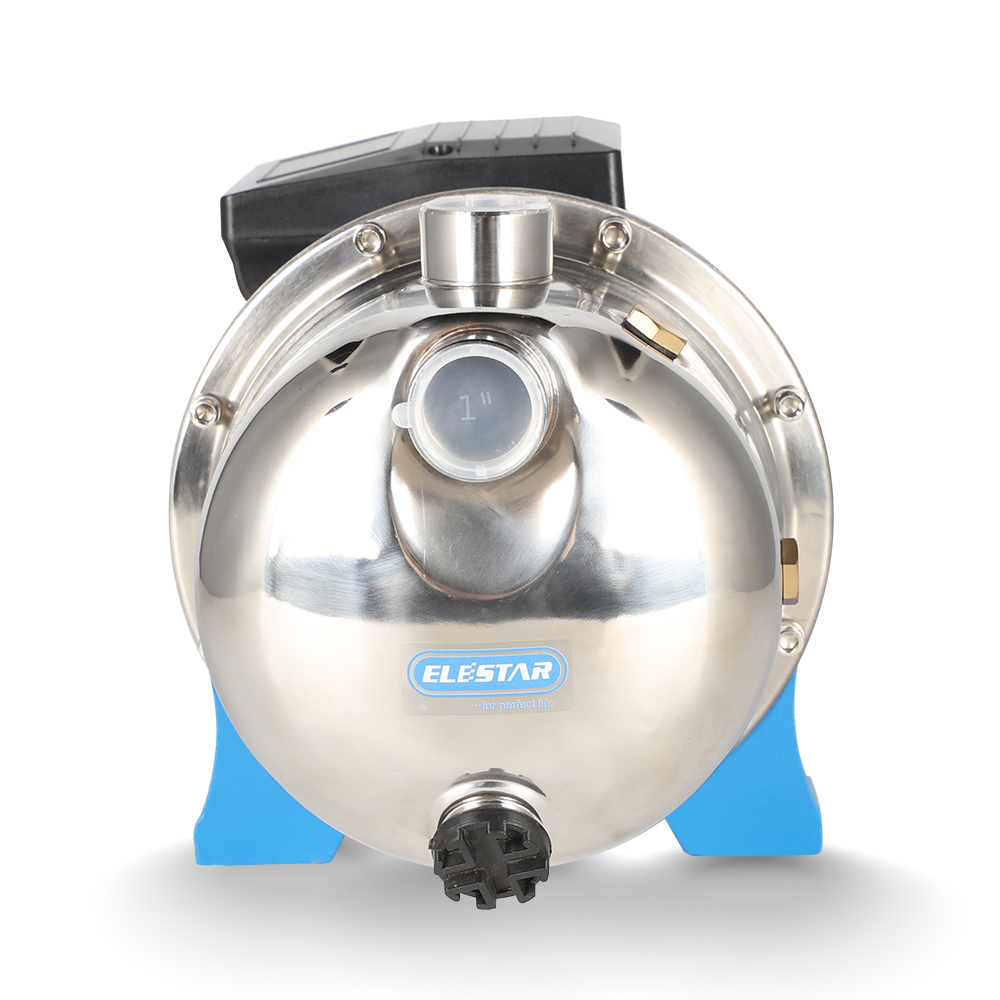

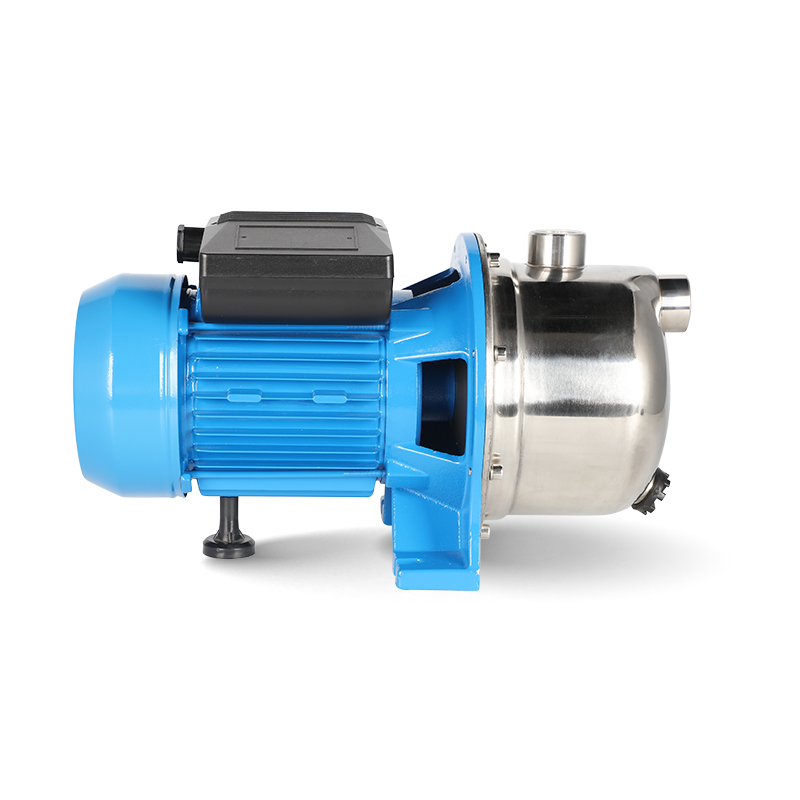

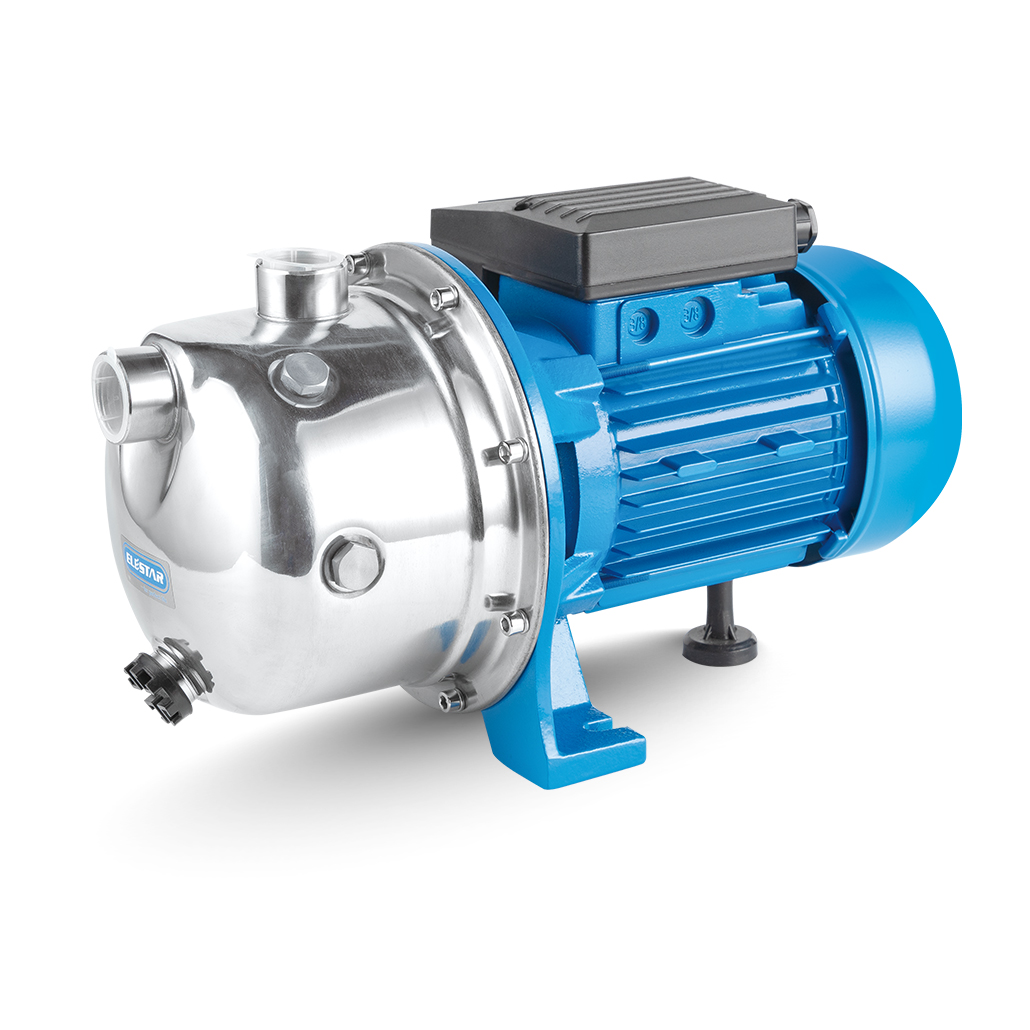

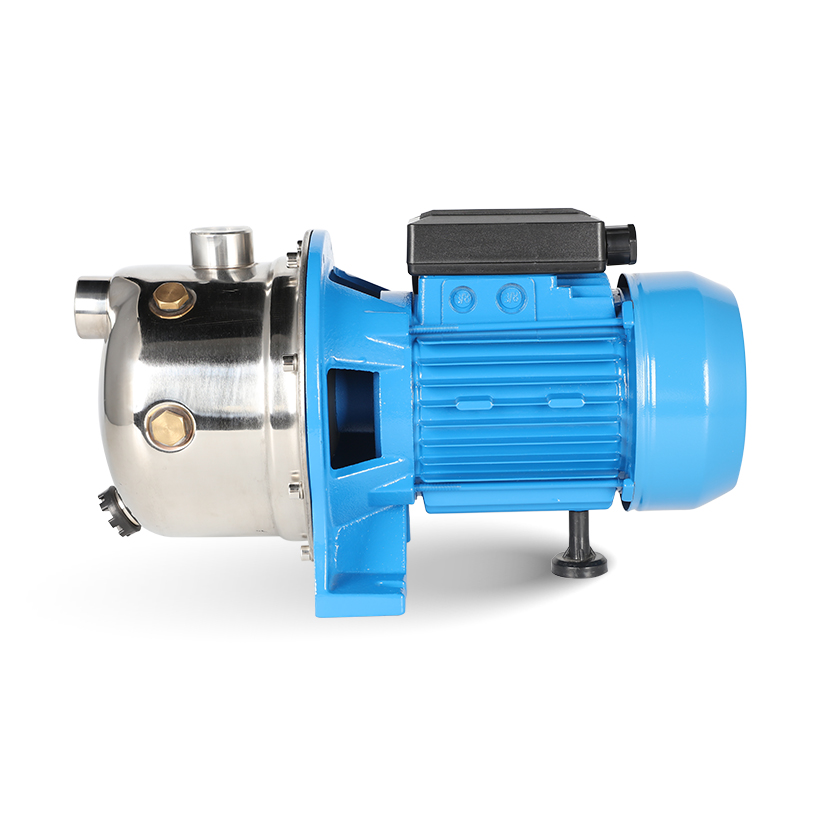

JS series stainless steel self-priming pumps are equipped with waterproof plug&switch,widely used in domestic and civil area.It is suitable for water suoolying in domestic installations,water intake from well,small-scale agriculture watering,garden and dountain water supplying and also can be assembled as a pump station for water supplying automatically. It is usually can be combined with a pressure switch and surge tank to be used as Domestic Water System for distributing water.

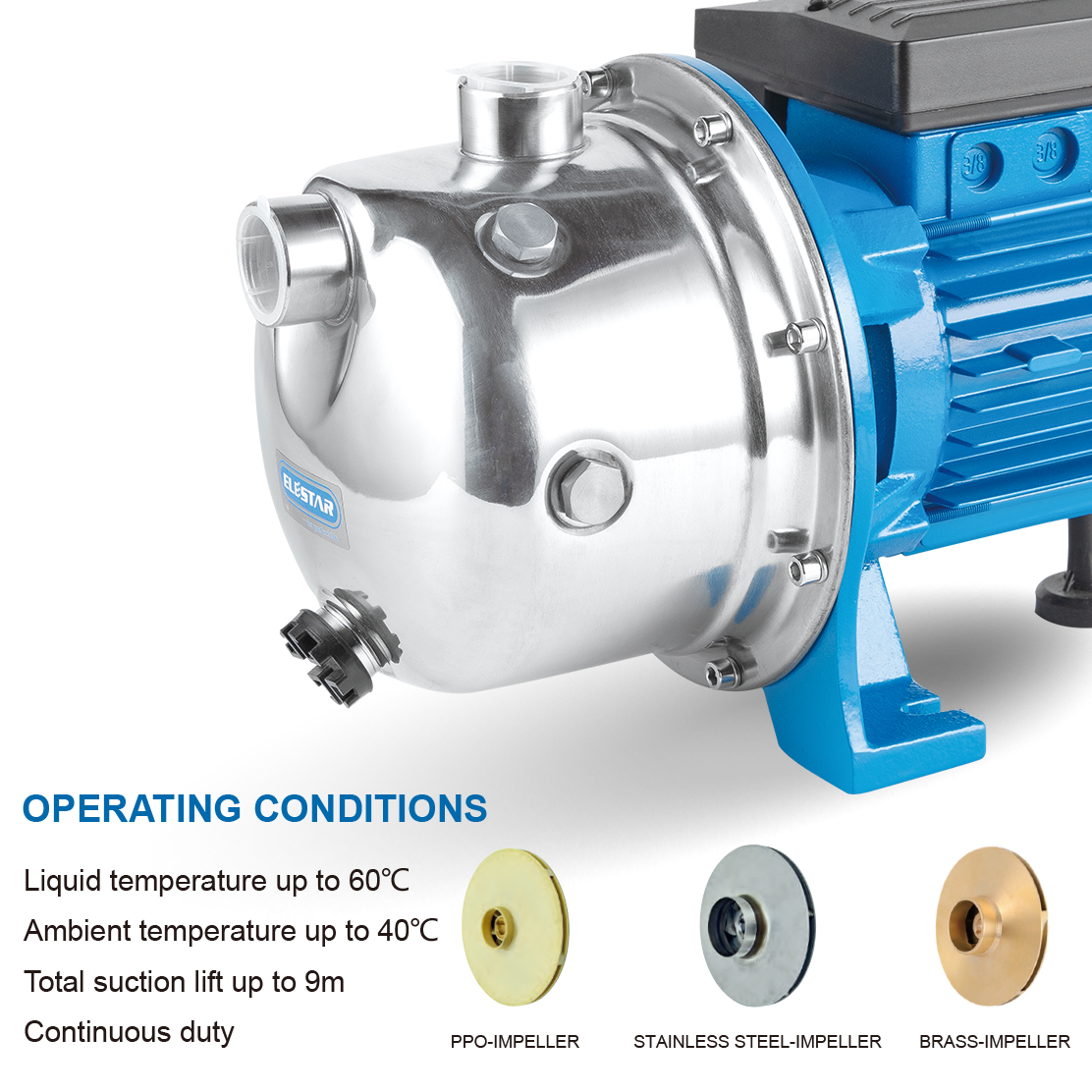

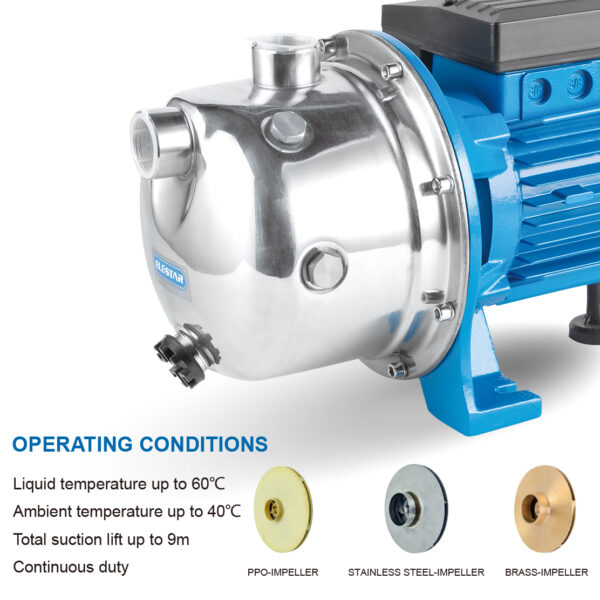

Operation Conditions

  • Liquid temperature up to 60℃
  • Ambient temperature up to 40℃
  • Total suction lift up to 9m
  • Continuous duty
PUMP
Single PhaseHeavy Duty Continuous Work
Pump bodyStainless steel
ImpellerBrass/Stainless Steel/Techno-polymer(P.P.O)
Mechanical SealSIC/Ceramic/Graphite

MOTOR

Motor HousingAluminum Alloy
ShaftCarbon steel/stainless steel
InsulationClassB/Class F
ProtectionIP44/IP54
CoolingExternal Ventilation

37 in stock

Description

The pump can be widely used for long-distance water conveyance in farmland, large-area sprinkler irrigation in gardens, fire water, fish pond aquaculture, water exchange in swimming pools, water bed filling, water heater flushing, drainage in flood areas, etc. It is a practical tool for homeowners, RV owners, rowers, ranchers, and campers. It can be used as a sprinkler pump, well pump, or booster pump and can pressurize your home for solar, washing machine, water heater, tap water, shower, etc.

The JET Self-priming Pump combine functions and advantages of centrifugal pump and self-priming pump, It is suitable for pumping clean water without impurities and non-corrosive liquid. The major advantages of this pump are high discharge head, high suction head, high efficiency, and the self-priming time is quite short. Therefore, it is widely applied for irrigating garden, farmland and supply water to high-rise buildings. In addition, the pump must be installed in enclosed place or keep it away from inclement weather.

ModelPowerQ.MaxH.MaxS.MaxInlet/OutletG.W.Packing dimension20GP
(Kw)(HP)(l/min)(m)(m)(inch)(kg)(mm)(pcs)
JS-600.370.5424091″×1″7395×220×2451300
JS-800.550.75464591″×1″10395×220×2451300
JS-1000.751525091″×1″11395×220×2451300
JS water pump
JS water pump

Additional information

Weight15 kg
Dimensions23 × 12 × 22 cm
colors

Black, Blue

warranty

2 Year
