Description

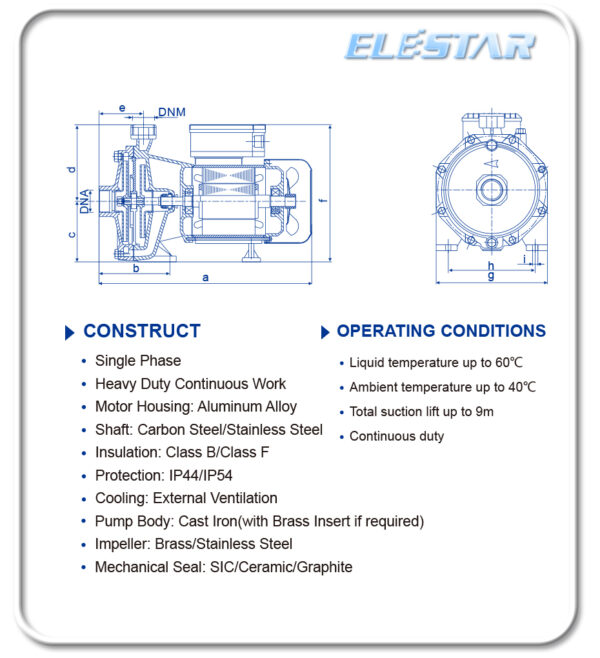

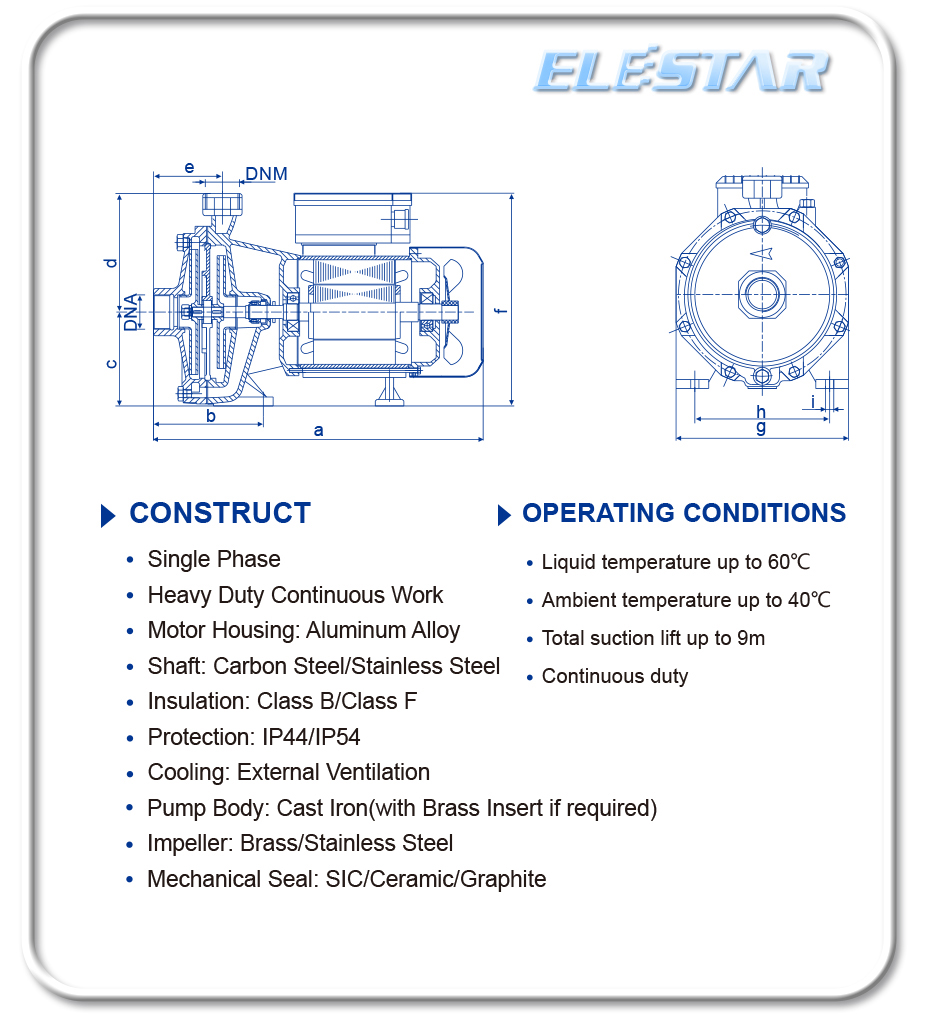

PUMP
| Single Phase | Heavy Duty Continuous Work |
| Pump body | Cast Iron |
| Impeller | Brass/Techno-polymer |
| Mechanical Seal | SIC/Ceramic/Graphite |
MOTOR
| Motor Housing | Aluminum Alloy |
| Shaft | Carbon steel/stainless steel |
| Insulation | ClassB/Class F |
| Protection | IP44/IP54 |
| Cooling | External Ventilation |

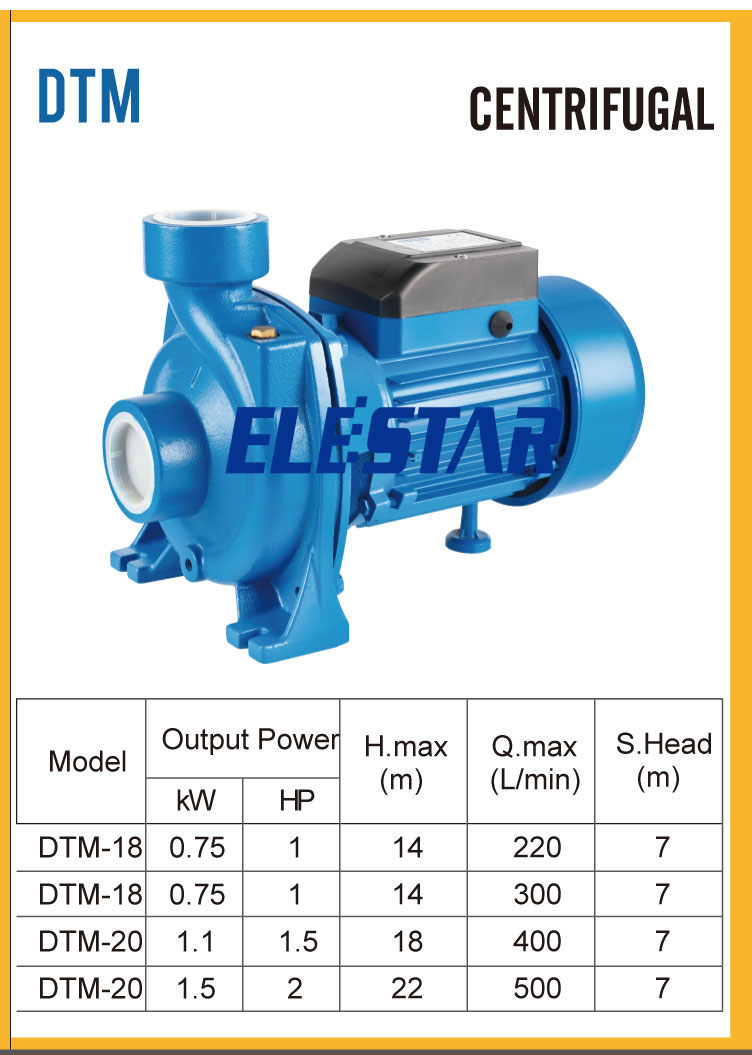

DTM series are single stage centrifugal pumps,can be used to transfer clean water or other similar water in physical and chemical properties .It is suitable for industrial use and urban water supply,pressure boosting for high buildings and fire system,garden irrigation,long-distance water transfer,heating ventilation and air controlling,circulation and pressure boosting for cold and hot water,and supporting equipment etc.
Operation Conditions
Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 9m
Continuous duty
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | Noryl P.P.O. |
| Motor housing | Aluminum | |
| Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK, S.K.F., or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
