1. Suitable for transferring clean water or other liquids which are not chemically aggressive to the pump components.
2. Widely used in well lifting, living water supply, automatic irrigation system, hot water pipeline boosting, and various corollary equipment, etc.

Features

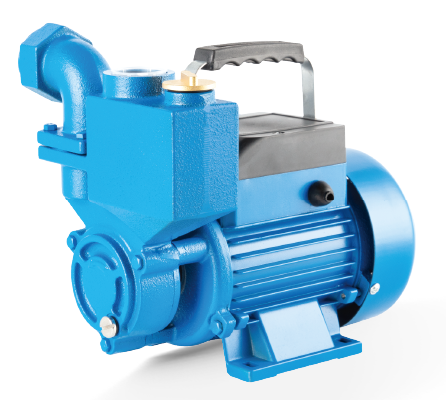

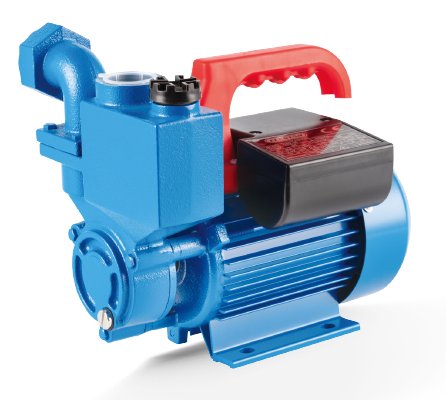

1. Automatic self-priming pump
2. Built-in one way valve

Operating conditions

The pump should be installed in a covered area, protected against the bad weather.
1. Maximum Liquid temperature:+60℃
2. Maximum Ambient temperature:+40℃
3. Maximum Suction: 8m
4. Protection class: Ip44 / Ip54
5. Insulation:Class B/Class F

Motor and pump

1. Copper winding motor
2. Single-phase: 220V-240V/50Hz
3. Single-phase with capacitor and thermal overload protection.

Optional available one request

1. Special request for mechanical seal, bearing and shaft
2. Other voltages or frequency: 60HZ
