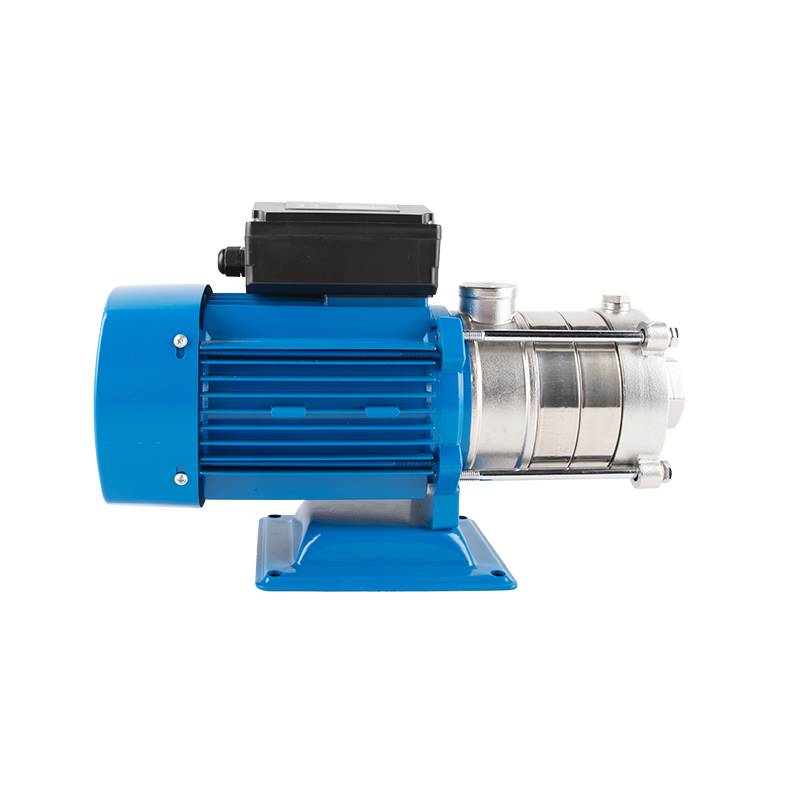

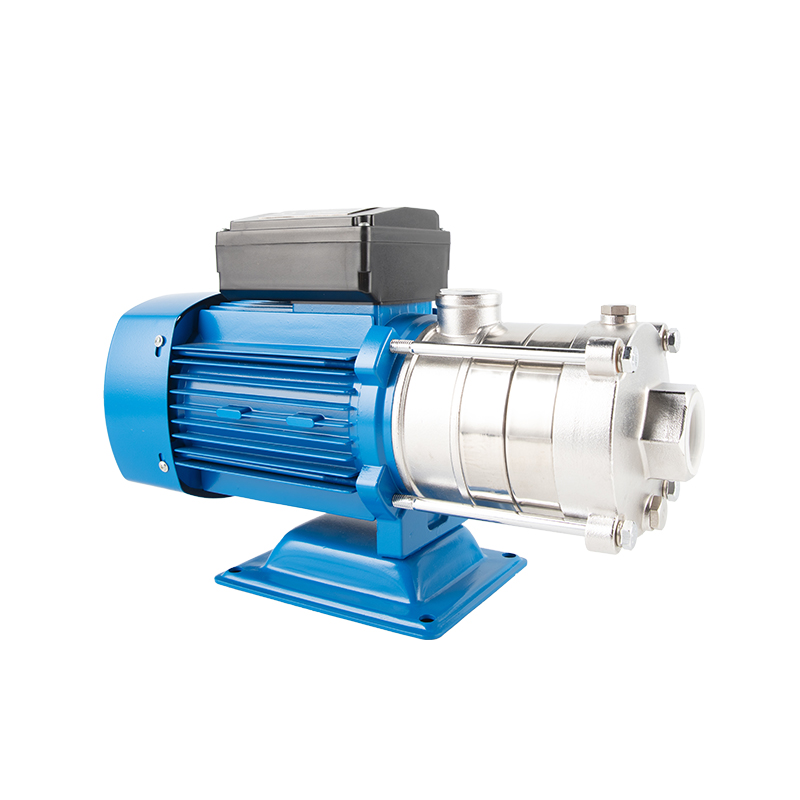

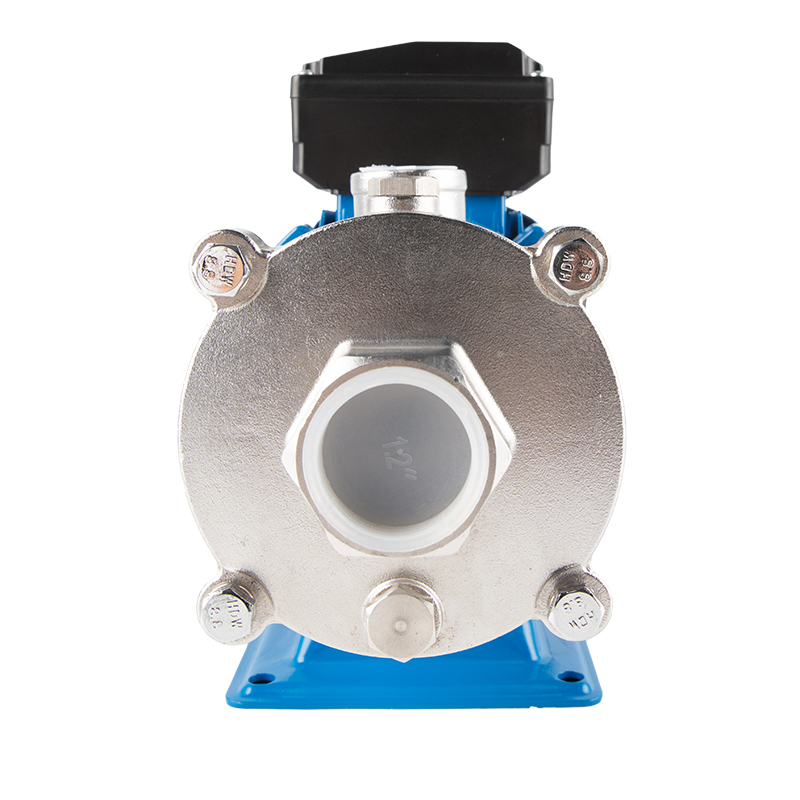

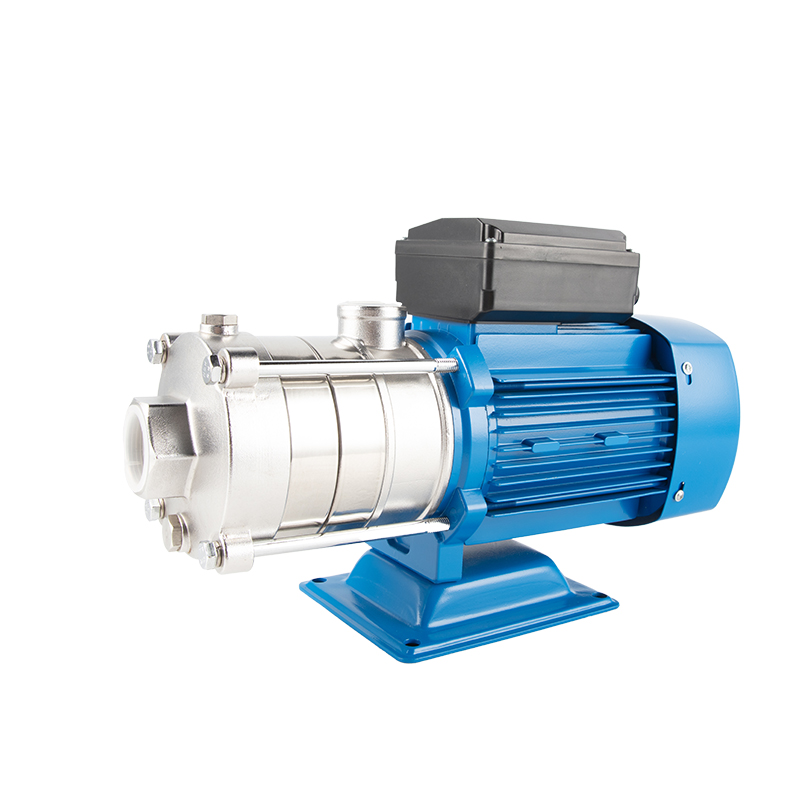

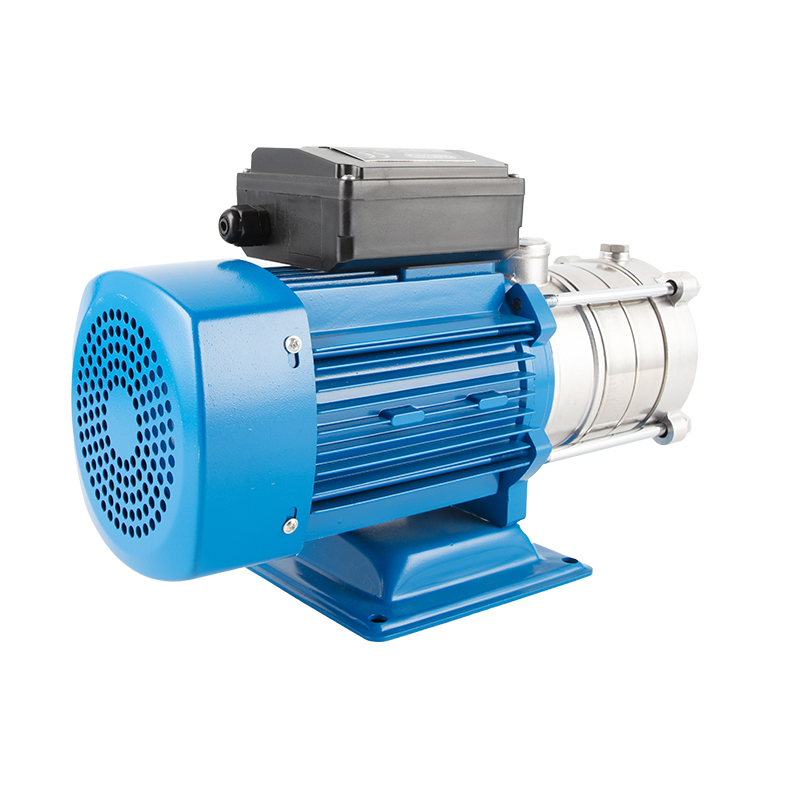

CHLF Horizontal Multistage Centrifugal Pump

Home CHLF Horizontal Multistage Centrifugal Pump

CHLF
CHLF
CHLF
CHLF
CHLF

Non-self-priming horizontal multistage centrifugal pump.
The impeller guide vane is made of stainless steel plate stamping and welding.|
Equipped with long shaft motor, axial inlet and radial outlet
Features and advantages
Compact structure and low noise.
Suitable for mildly corrosive liquids.
Small installation space

 SS304 horizontal, multistage centrifugal pump.
◆ Ensuring durability and easy in operation.
◆ CHLF water pump head are in cast iron.
◆ CHLF pump impeller and shaft are in stainless steel.
◆ CHLF pump all wetted parts are in stainless steel.
◆ YE3 high efficient motor, with protection IP55 class F.
◆ Quality bearing, wear resistance mechanical seal.
◆ Liquid temperature between -15°C and +105°C.
Add to wishlist
Category: Tags: , , , ,

Description

Elestar Horizontal Multi Stage Centrifugal Pump is reliable and service-friendly, space-saving, suitable for slightly aggressive liquids and is Energy efficient.

Close coupled Horizontal Multistage Pump with stainless steel parts which be driven by a standard TEFC moto, pump has axial inlet and radial outlet.
Standard supply for liquid temperature up to 700, high temperature pumps are available on request.

Mechanical seal is Tungsten Carbide/Graphite, other material is available on request Pumps are available in SS 304 or SS 316.

Horizontal Multi Stage Pumps have compact design, low-noise and long service life. They are easy to install and operate. Energy efficient Horizontal Multistage design with stainless steel stamped-welded impeller and diffusers.

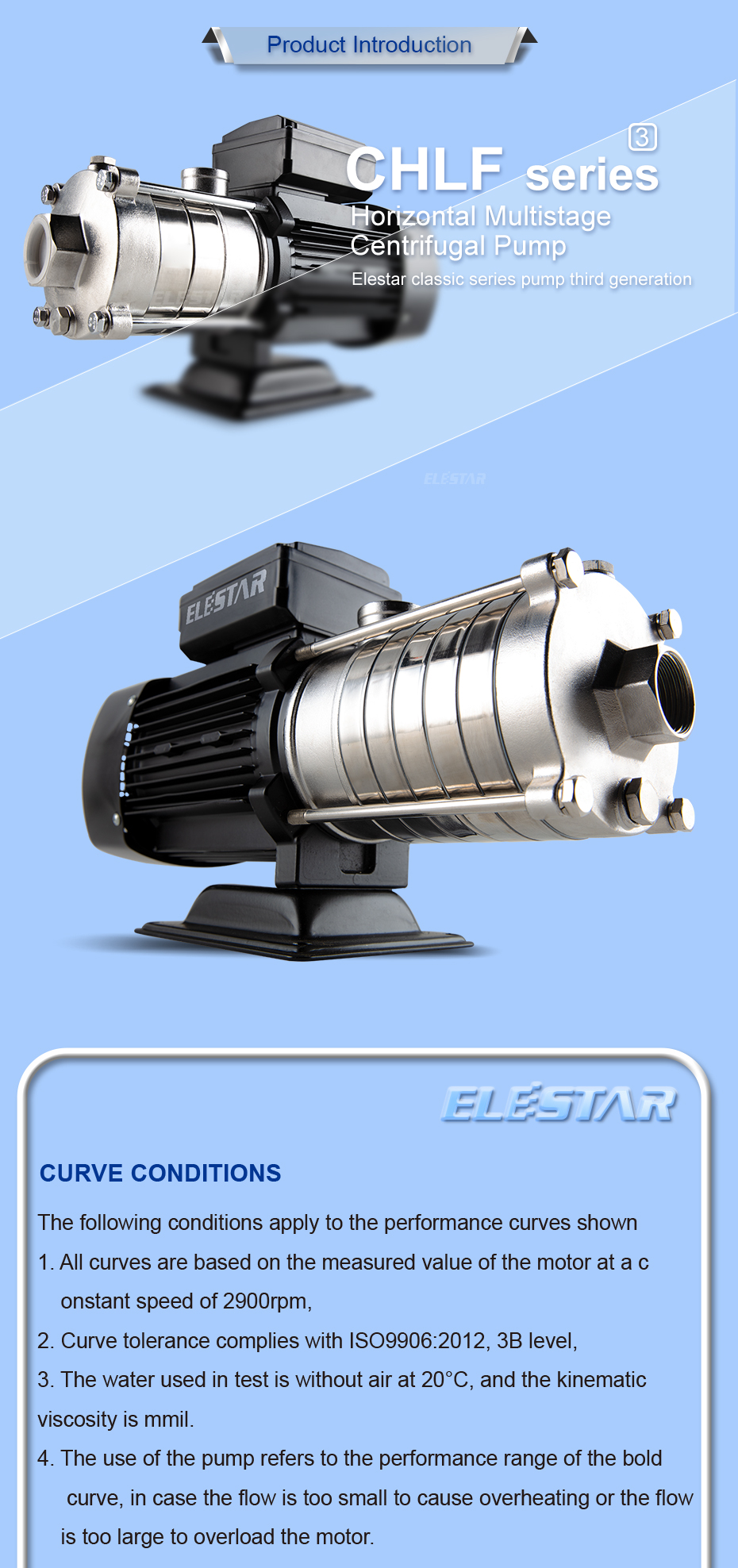

CHLF water pump

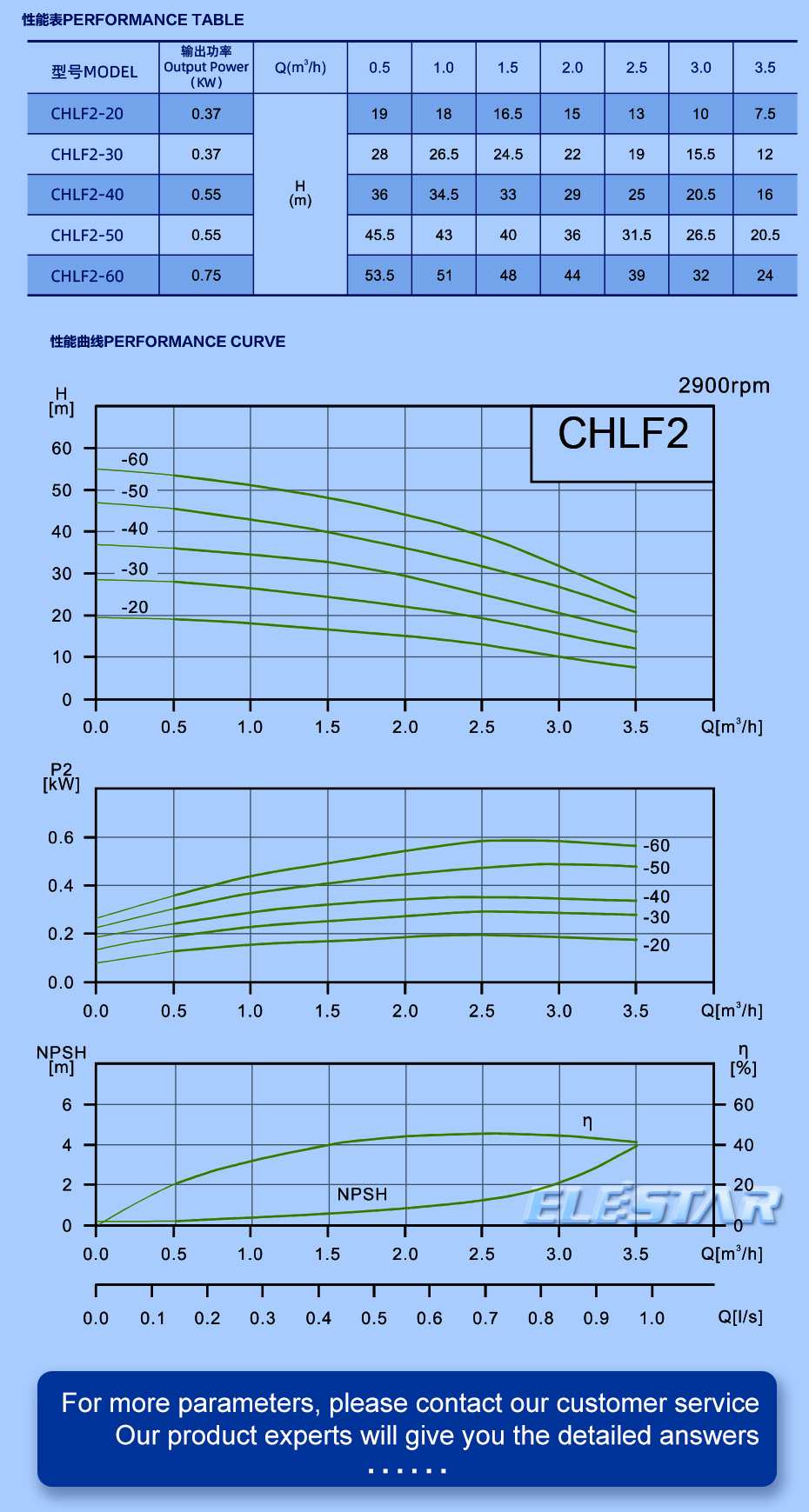

CHLF water pump

CHLF water pump

Inquiry
