Description

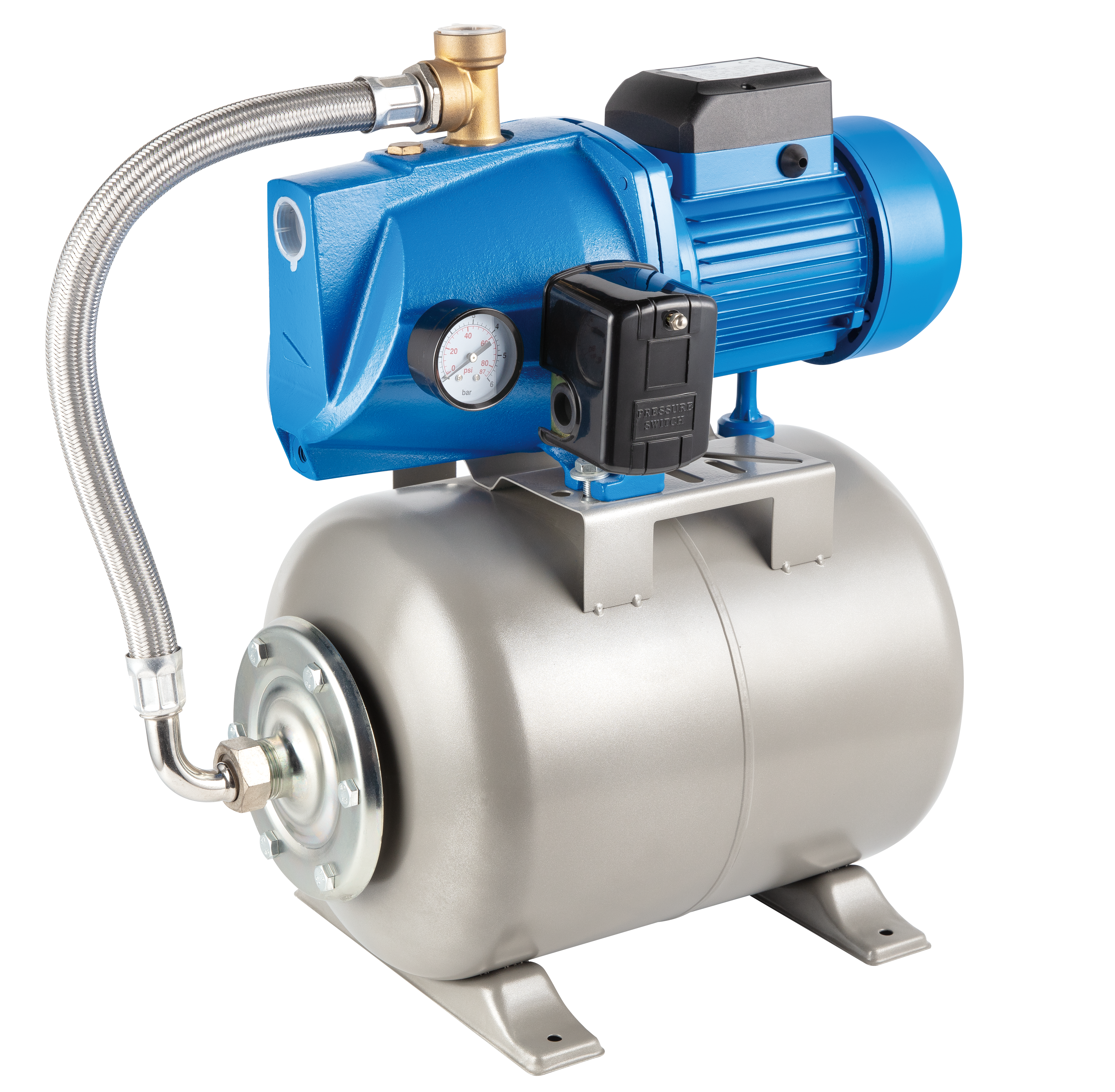

Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.Pump body with brass plate embedded to avoid impeller jam. It is one of our best sellers. it is well known to many customers and the price is very competitive on the market.
Applications:
1) Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply, and drainage, pipeline boosting, etc.
2) In particular for delivering water in combination with small pressure and for irrigation.
3) Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
4) Long distant water supply.
5) Suitable for household, civil and industrial applications.
6) Garden spraying.
Structural characteristics:
Main Specification | Standard | Optional |
Transmission medium | Clean Water | |
Pump body | Cast Iron | |
Impeller | Brass | Noryl PPO |
Motor housing | Aluminum | |
Stator&Rotor | 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | |
Bearing | Chinese Best Quality Bearing | NSK,SKF, or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
Thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
