Description

The automatic booster systems consist of a JET water pump, peripheral pump, Centrifugal pump, a pressure tank, an airtight pressure switch, a pressure gauge and a connecting flexible pipe. Make the pump automatic more convenient to use. The pressure tank, equipped with a non-toxic rubber membrane, has been pre-filled with air pressure of approx0.12MPa before leaving the factory.

These systems give suitable mains water pressure as required by modern domestic applications and industrial applications, and will ensure enough water to supply all user outlets. Most of the pumps included in our range of products can actually be used to form automatic booster systems.

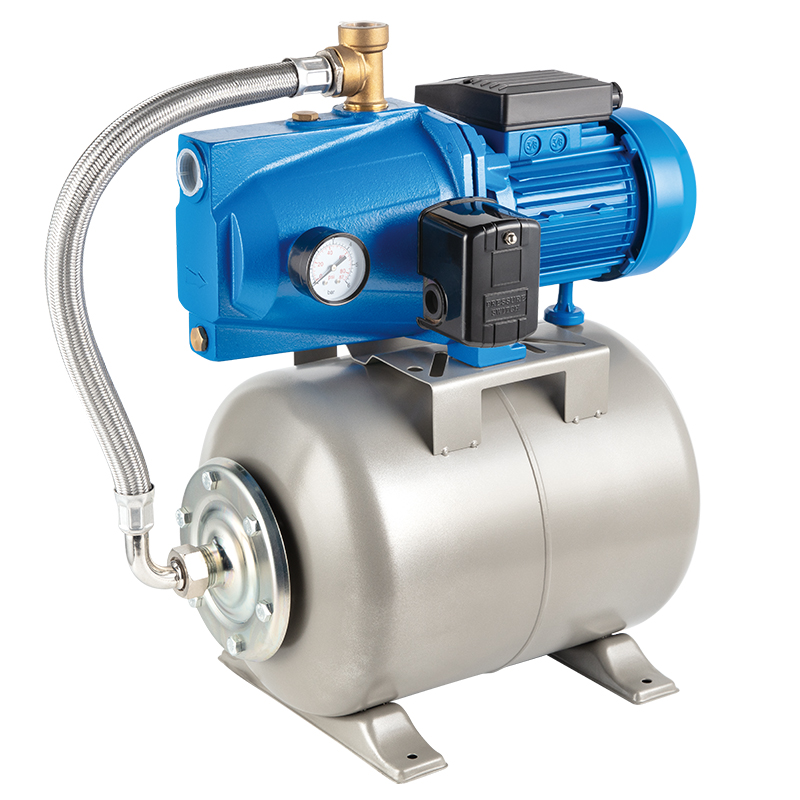

Small automatic pump
1. Stainless pump body. Light. Convinient
2.24L. Pressure tank
3. Fexible hose

Small automatic pump
Model
Autojet-60L: 0.5HP
Autojet-80L: 0.75HP
Autojet-100L: 1.0HP
Accessory
Tank: 24L
Flexible hose: 1″× 1″
Pressure switch: Fsg/1, fsg/3
Pressure gauge: 7bar (100psi)
Brass connector: 3 way
Cable: 1.5 meters
Operating limits
Liquid temperature up to 60
Maximum ambient temperature 40

Autojetp series automatic pump is with pump body and spare arts in plastic, find many uses in domestic applications, gardens and supply water from wells, and so on. These pumps are suitable for clean water and chemically aggressive liquild. They are very light reliable, safe and simple to use.
