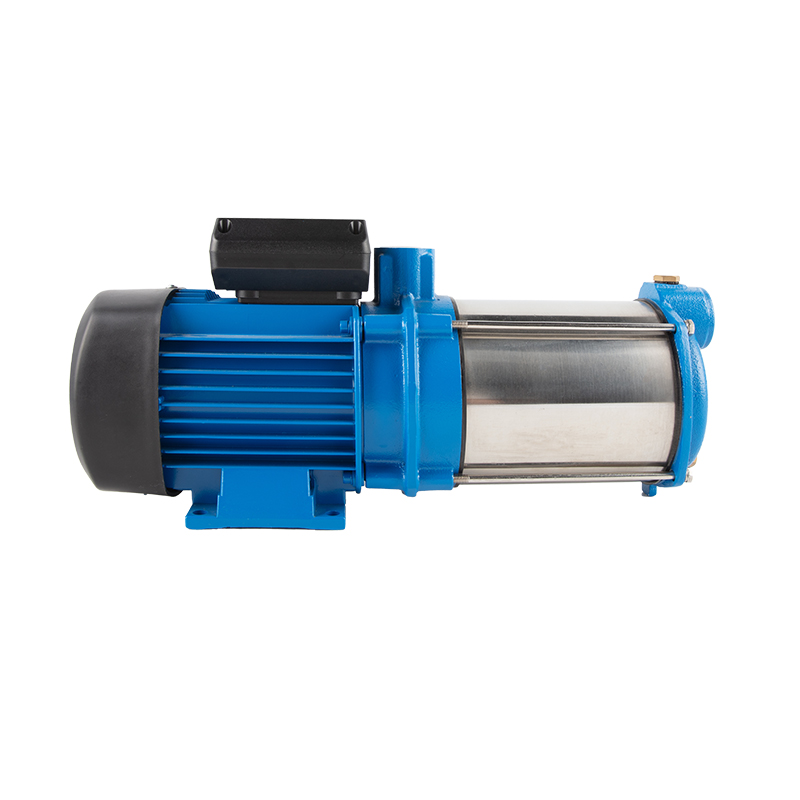

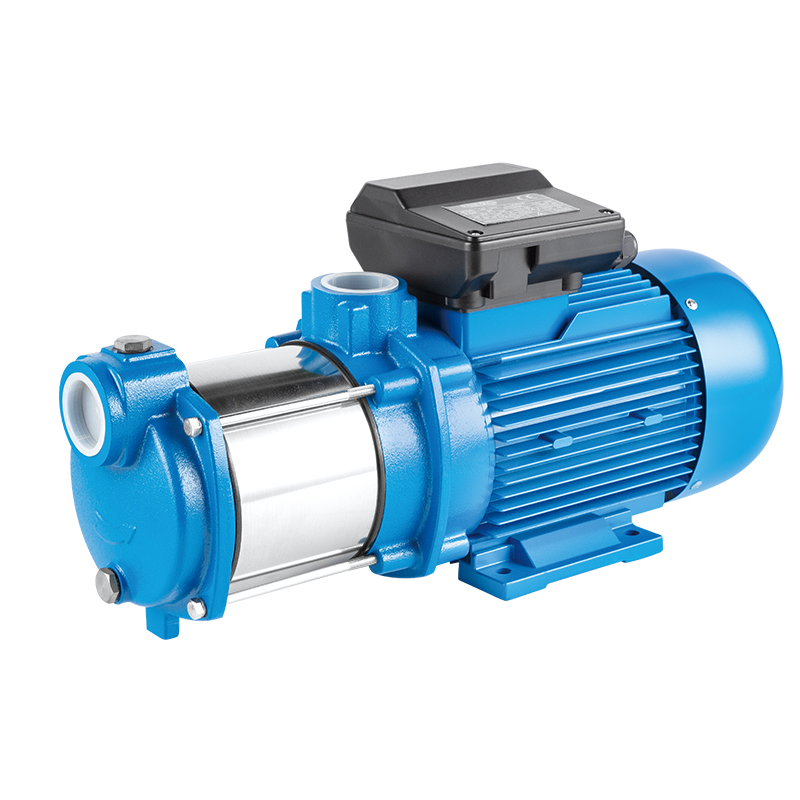

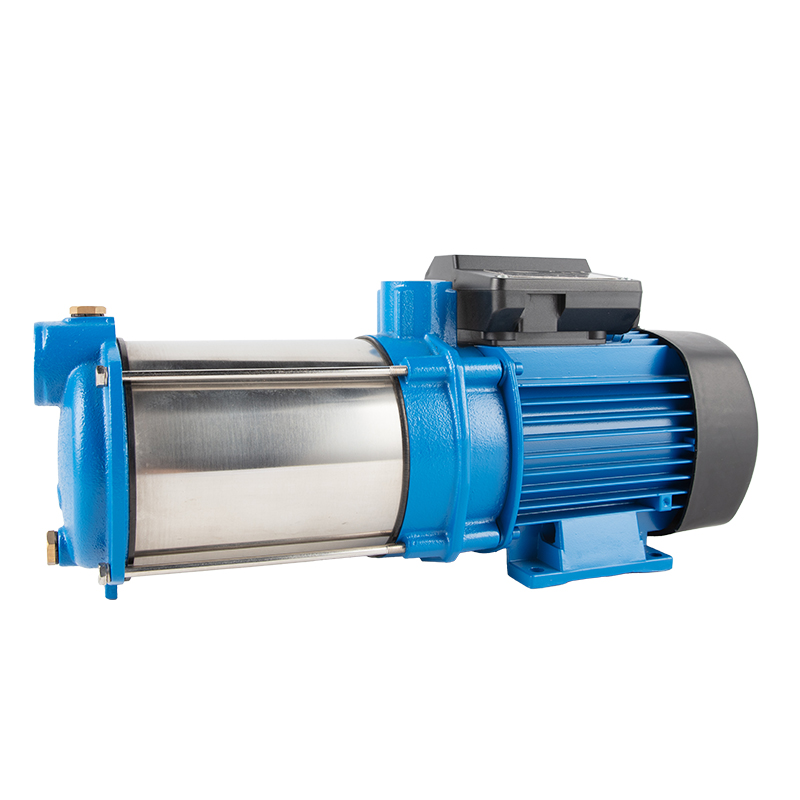

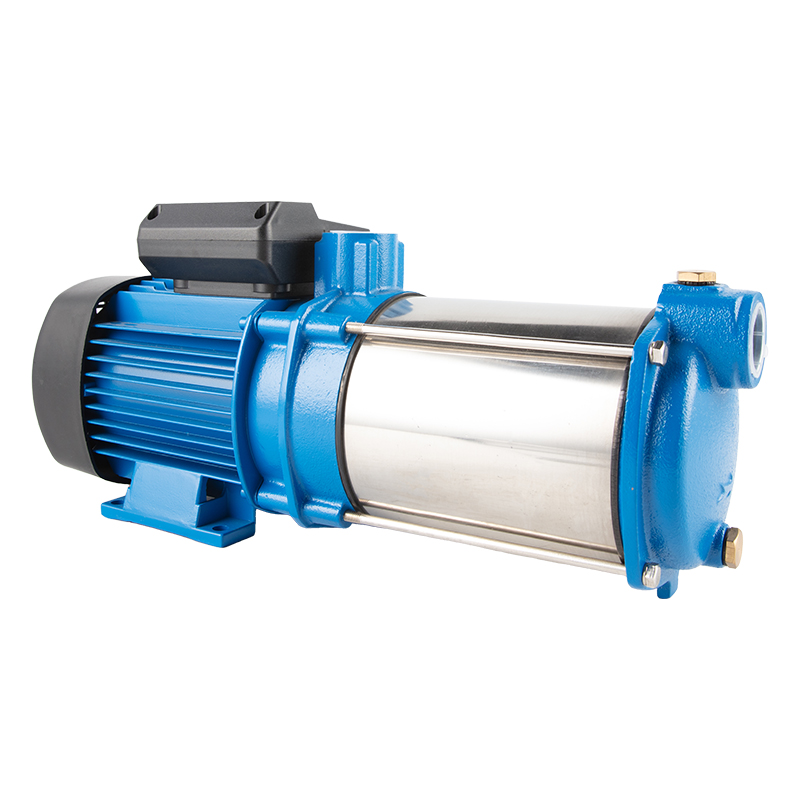

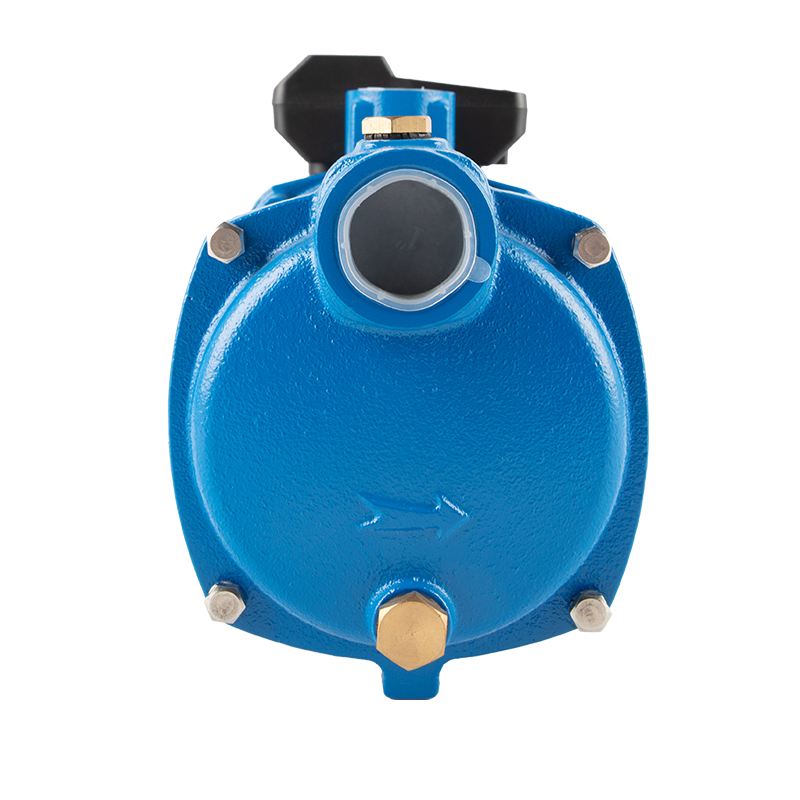

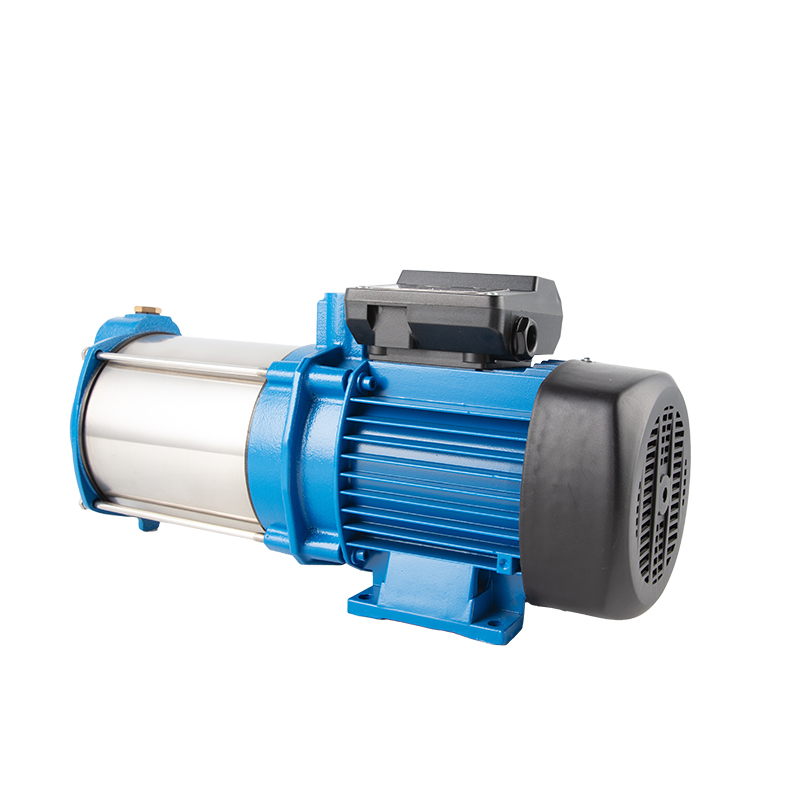

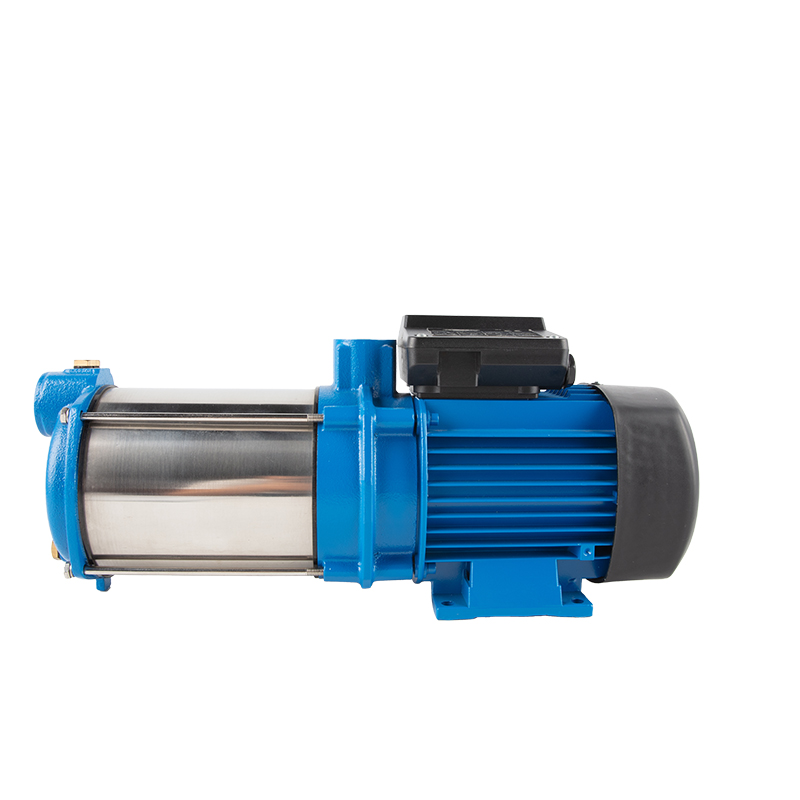

MH-A Horizontal Multistage Centrifugal Water Pump - Elestar Pumps

Transfer clean water or other liquids similar to water in both physical and chemical properties
– Suitable for industrial use and urban water supply, domestic water supply, high rise buildings, long distance water transfer and related auxiliary equipment

Pump with self-priming design,Cast iron pump body and support under special anti-rust treatment

PUMP

Single Phase	Heavy Duty Continuous Work
Pump body	Cast Iron/stainless steel
Impeller	stainless steel/PPO

Mechanical Seal

SIC/Ceramic/Graphite

MOTOR

Motor Housing	Aluminum Alloy
Shaft	Carbon steel/stainless steel
Insulation	ClassB/Class F
Protection	IP44/IP54
Cooling	External Ventilation

MH series are designed to work withclean water in domestic applications ,irrigation,industry,etc.the pump body is made of stainless steel,so that they are of beautiful design.At the same time,they have the adcantage of low noise,easy operation and reliable performance.

Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

Add to wishlist

Description

Description

The MH Series, multi-stage booster pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications. The MH Series is offered in five flow rates, 3-phase options, and horsepower sizes up to 7.5HP to make sure you have the right pump to fit your application.

These pumps are centrifugal monoblock type available in both single phase and three phase supply. Most of the wetted parts in the pumps are made up of corrosive resistant stainless steel material for durability. All single phase pumps are thermally protected.
