Description

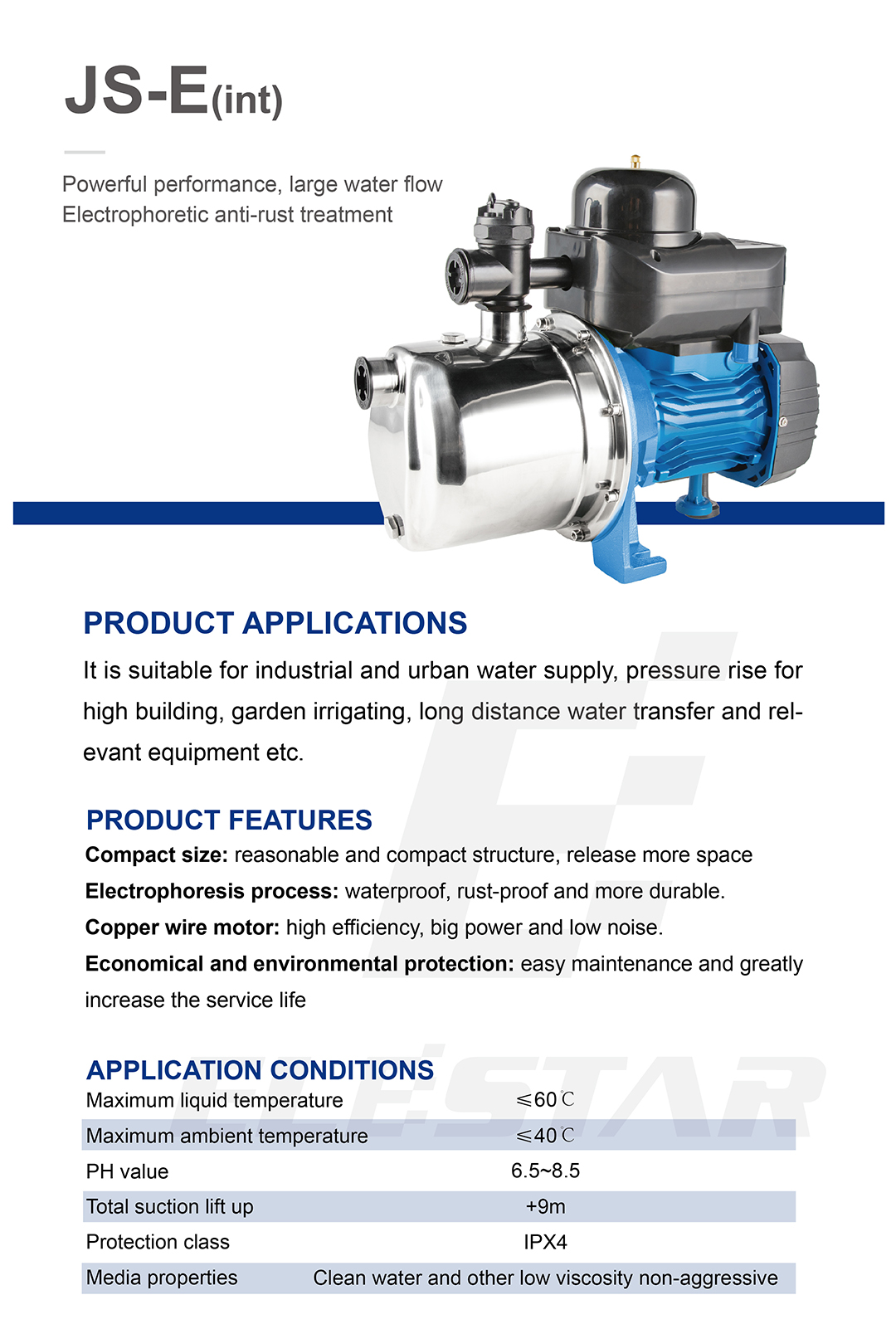

Liquid temperature up to 60ºC | Compact size: reasonable structure,release more space |
Ambient temperature up to 40ºC | Electrophoresis process: waterproof, rust-proof and more durable. |
Total suction lift up to 9m | Copper wire motor: high efficiency. big power and low noise. |
Continuous duty | Economical and environmental protection: easy maintenance and greatly increase the service life |
CONSTRUCT | Pump & Motor | ||
Heavy Duty Continuous Work | Mechanical Seal: | SIC/Ceramic/Graphite | |
Single Phase | Shaft: | Carbon Steel/Stainless Steel | |
Motor Housing: | Aluminum Alloy | Insulation: | Class B /Class F |
Cooling: | External Ventilation | Protection: | IP44/IP54 |
Impeller: | Brass/Techno-polymer(P.P.O)/Stainless Steel | Pump Body: | Stainless Steel |
